- Wizmart
- Conventional thermal optical fire detector
- Certificate EN54 part 5-7
- Low profile
- Double LED alarm to see it from anywhere
- Alarm and fault warning
- Made of ABS material with heat resistance
- Base not included
- Interchangeable base with the entire Wizmart range.
- Supported bases: Low profile base NB-BASE-W, tube base NB-HBASE-W
Security Products

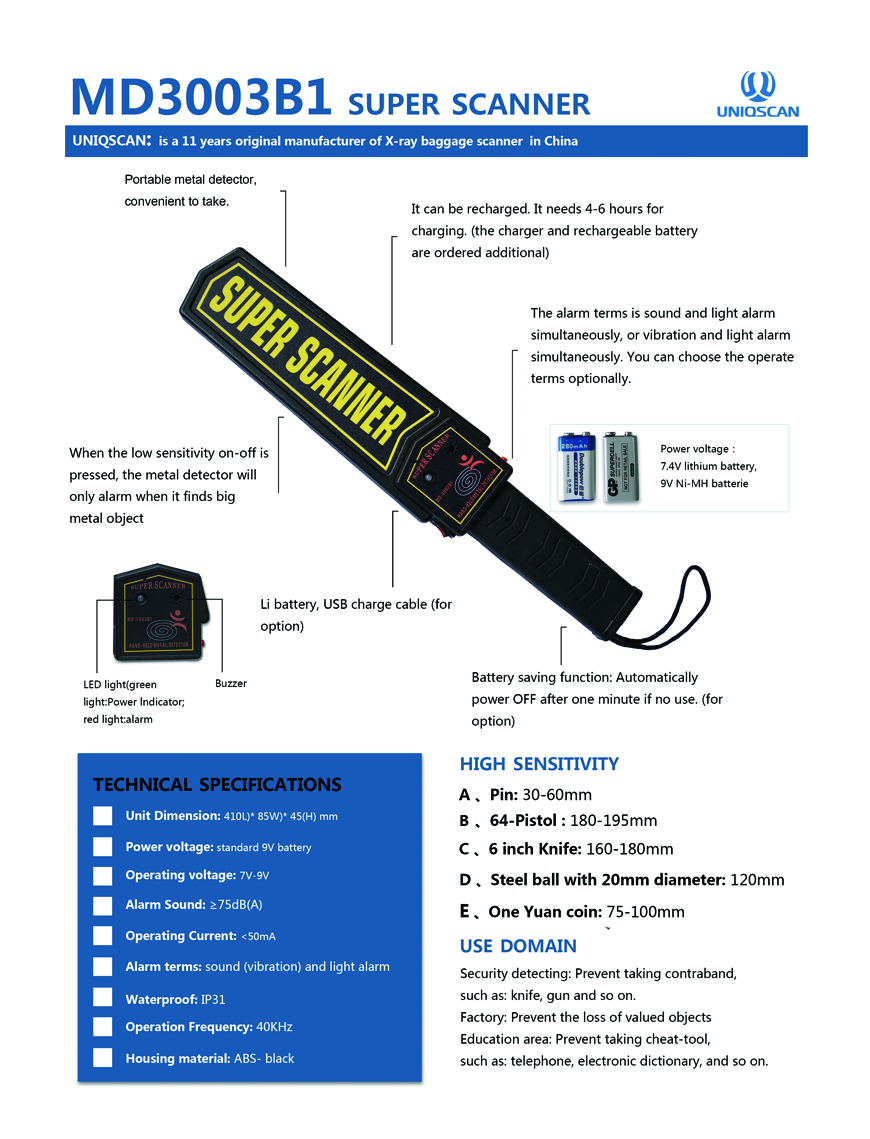

MD3003B1
SUPER SCANNER

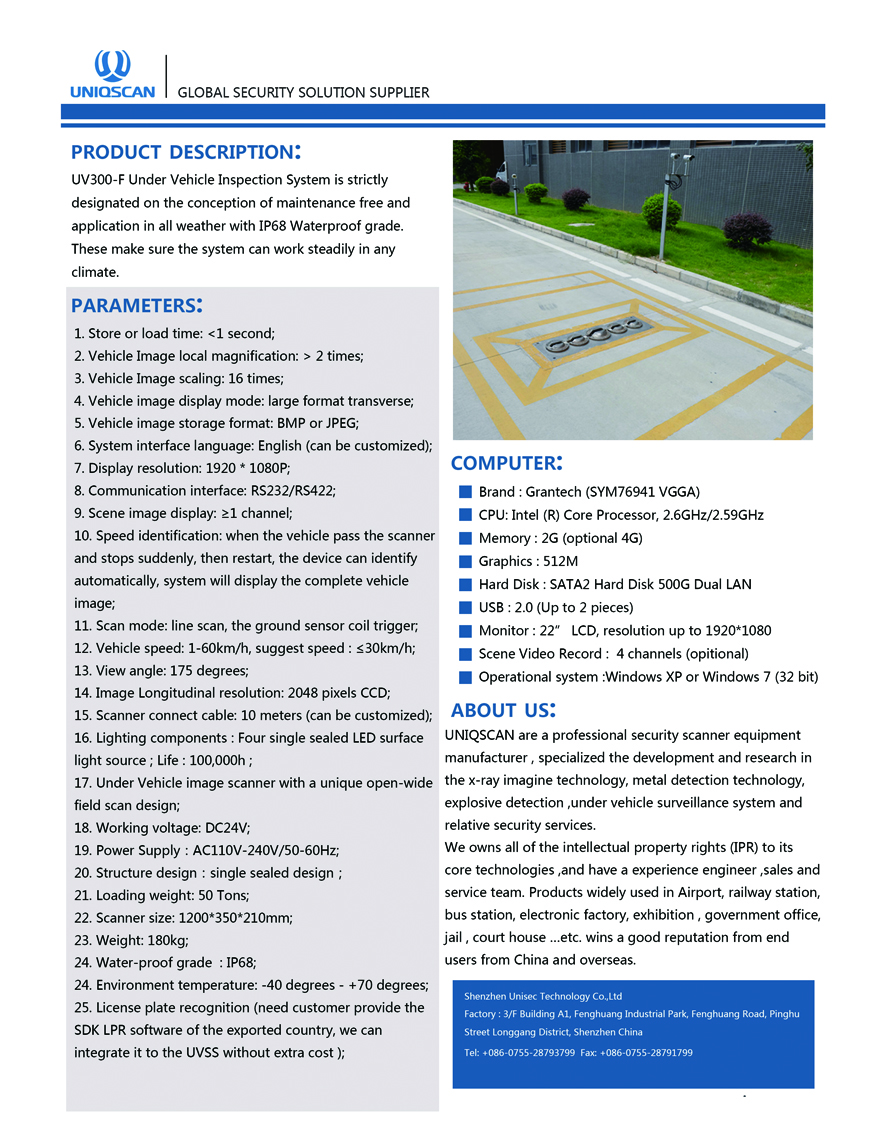

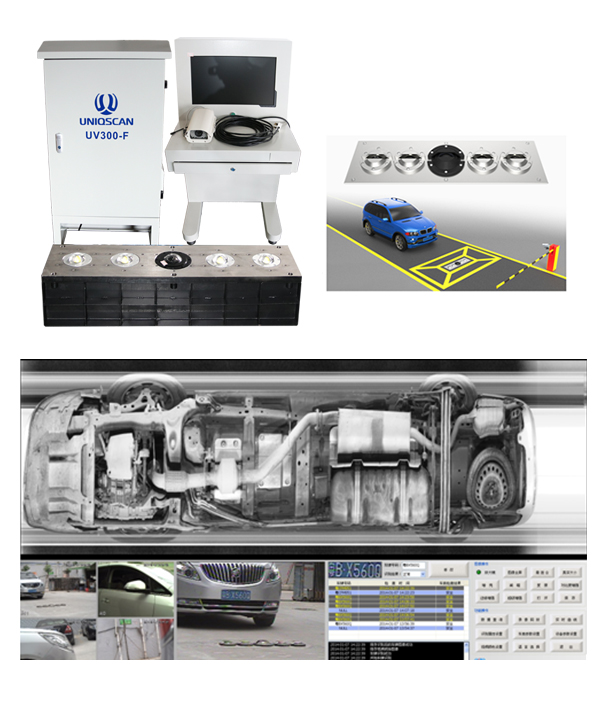

UV300-F
Under Vehicle Scanner
SF5636
X-RAY Baggage Scanner
UB800
Walk Throuth Metal Detector
v160
Hand Held Metal Detector
288-VFCY
Split leather jacket with Velcro.
NB-338-2H-LED
Conventional thermal optical fire detector
- Conventional thermal optical fire detector
- Certificate EN54 part 5-7
- Double LED alarm to see it from anywhere
- Made of ABS material with heat resistance
- Base not included
- Interchangeable base with the entire wizmart range
Description
Specifications
Brand and model | Wizmart-NB-338-2H-LED |
Voltage DC | 24V |
Thermal | 57° |
Consumption standby mode (Max.) | 100μA |
Consumption alarm (Max.) | 70mA |
Consumption peak | 130μA |
Initiation time (Max.) | 60 Seconds |
Consumption allowed (Max.) | 80mA |
Frequency | 3-5 Secs. |
Certification | EN54 part 5-7 |
Contents

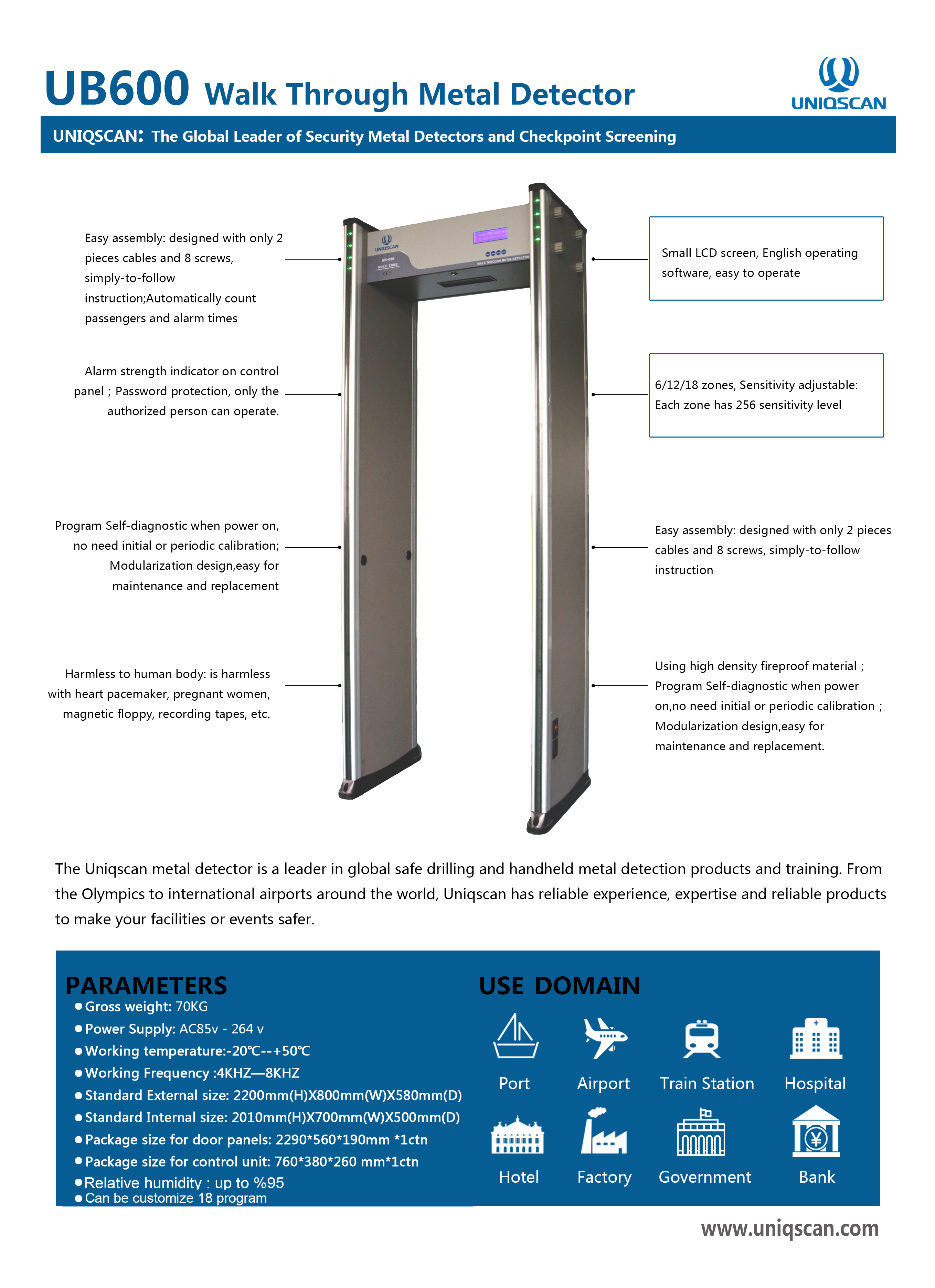

UB600
Walk Through Metal Detector
NB-338-2-LED
Conventional optical fire detector
Description
- Wizmart
- Conventional optical fire detector
- Certificate EN54 part 7
- Low profile
- Double LED alarm to see it from anywhere
- Alarm and fault warning
- Made of ABS material with heat resistance
- Base not included
- Interchangeable base with the entire Wizmart range
- Supported bases: Low profile base NB-BASE-W, tube base NB-HBASE-W
Specifications
Brand and model | Wizmart-NB-338-2-LED |
Voltage DC | 24V |
Consumption standby mode (Max.) | 90μA |
Consumption alarm (Max.) | 70mA |
Consumption peak | 120μA |
Initiation time (Max.) | 60 Seconds |
Consumption allowed (Max.) | 80mA |
Frequency | 3-5 Secs. |
Certification | EN54 part 7 |
Contents
688-NYN/N
Black polyester glove with black nitrile coating.

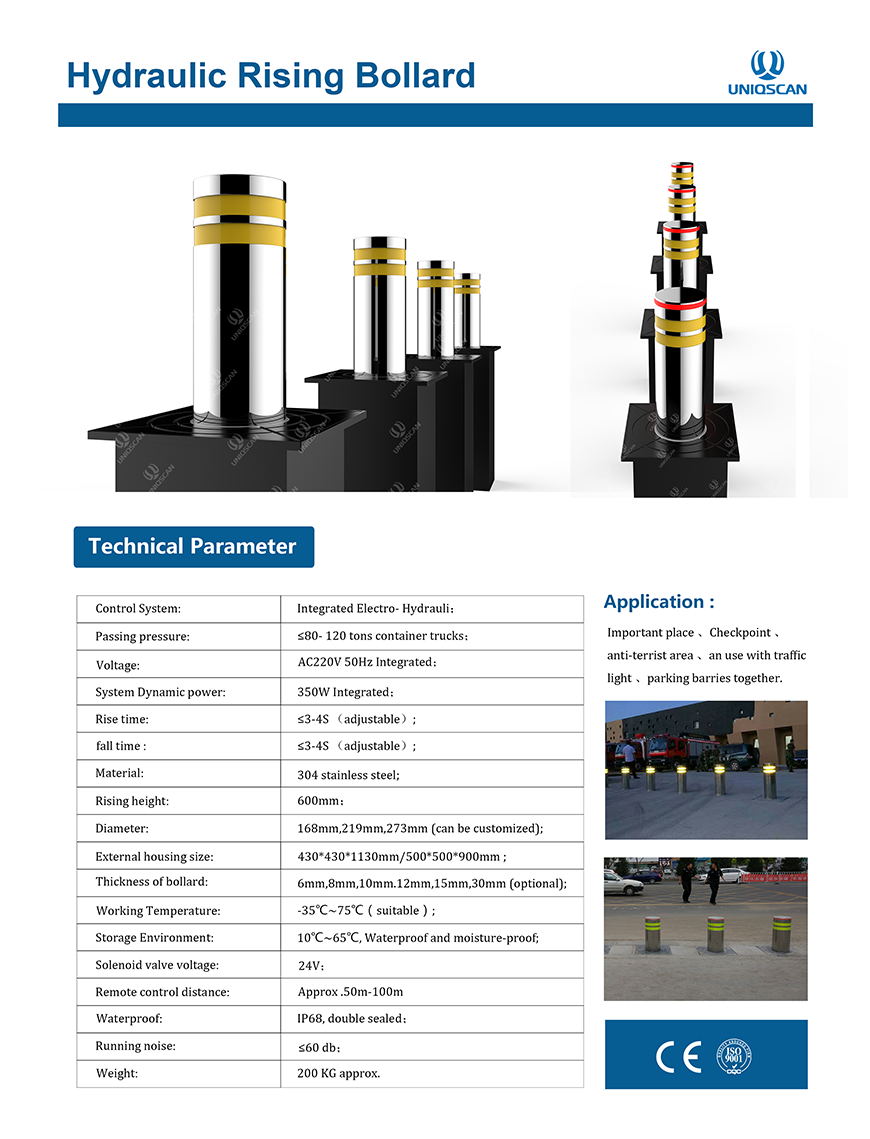

Road Blocker
White polyester glove with grey nitrile coating
Material: |
A3 Steel , with anti-rust paint
|
Surface treatment : |
Paint with reflective strip
|
IP rate : |
IP67 waterproof
|
Standard color: |
Black and yellow, Customized color |
Length: |
3M,4M,5M,6M Can be customized |
Width : |
500mm |
Height: |
70~90mm |
Max loading weight: |
80T container truck |
Spike Height : |
150mm |
Spike Thickness: |
10mm |
Drive mode: |
Electromechanical |
Voltage: |
AC220V |
System Dynamic power |
180W |
Control distance |
≤100M |
Remote control distance: |
≤50M |
Thickness: |
12mm |
Rise time : |
≤1-2S (adjustable) |
fall time : |
≤1-2S
|
Working Environment : |
-40℃~+70℃ |
Storage Environment : |
-10℃~65℃ |
Weight |
0.5T |
Road Blocker

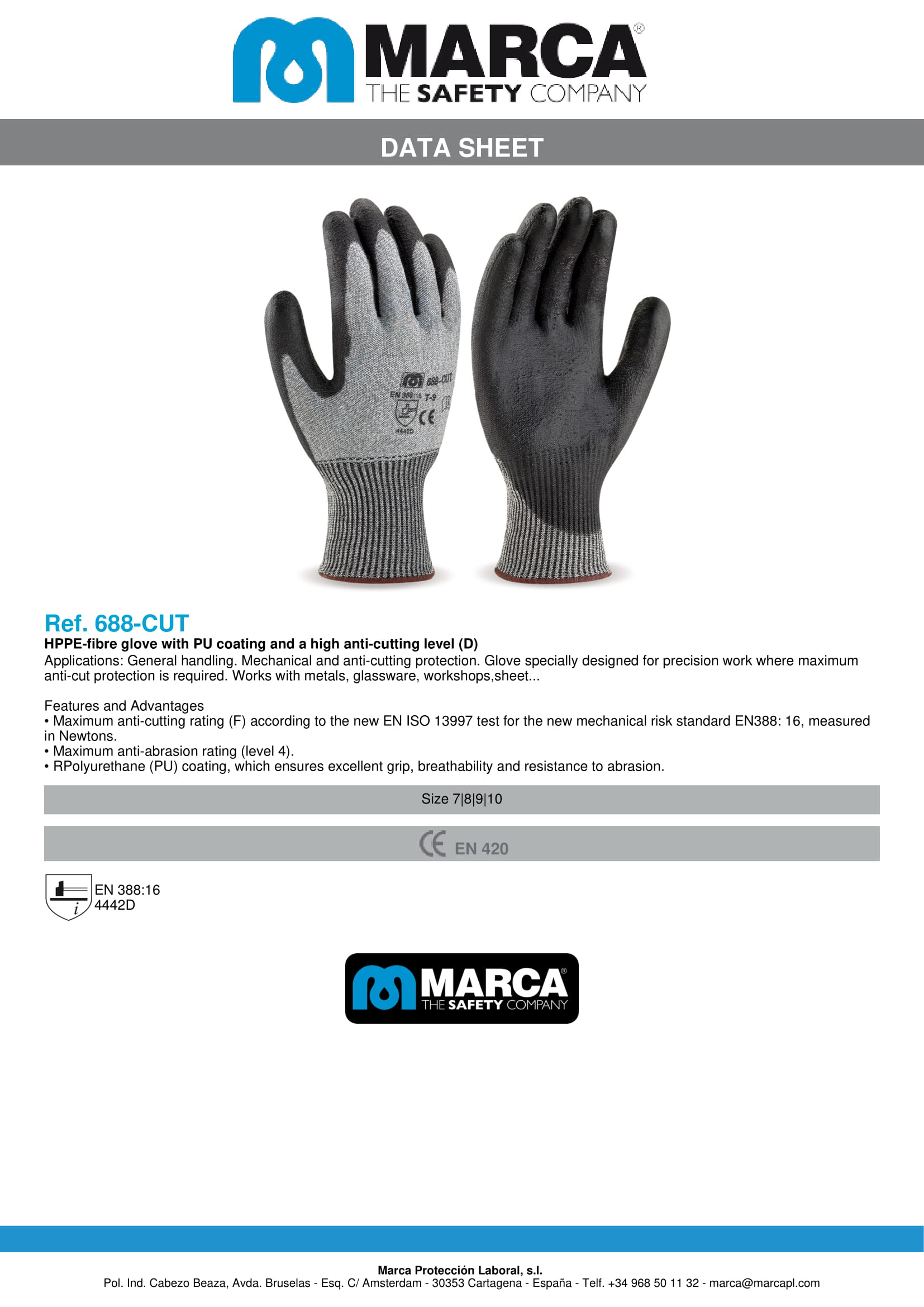

688-CUT
HPPE-fibre glove with PU coating and a high anti-cutting level (D)
688-VAUT
Blue vinyl glove.

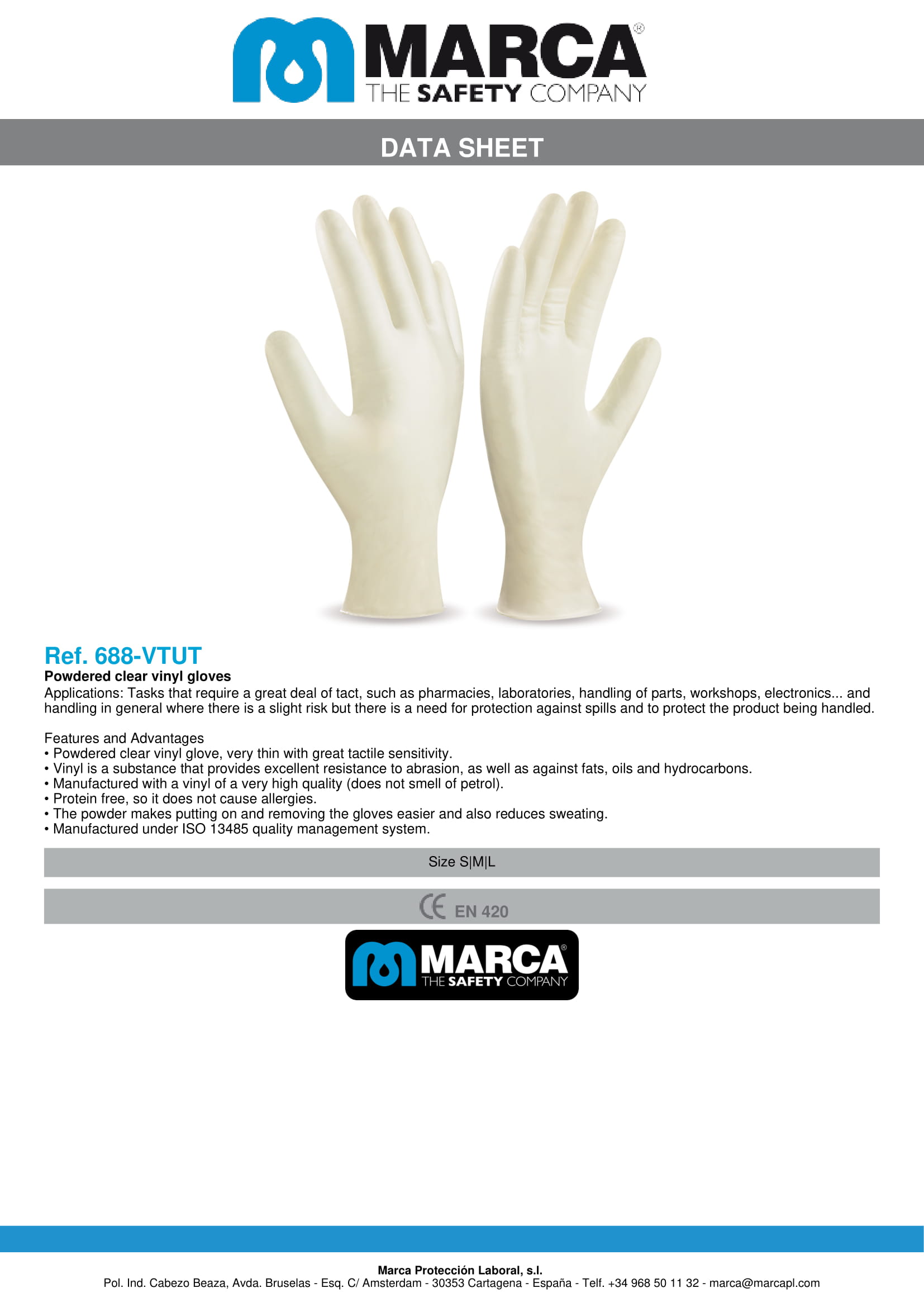

688-VTUT
Powdered clear vinyl gloves
688-LDN/N
Orange-latex industrial gloves for mechanical, chemical and microbiological hazards.
688-NEO/N
Black neoprene glove for mechanical and chemical hazards

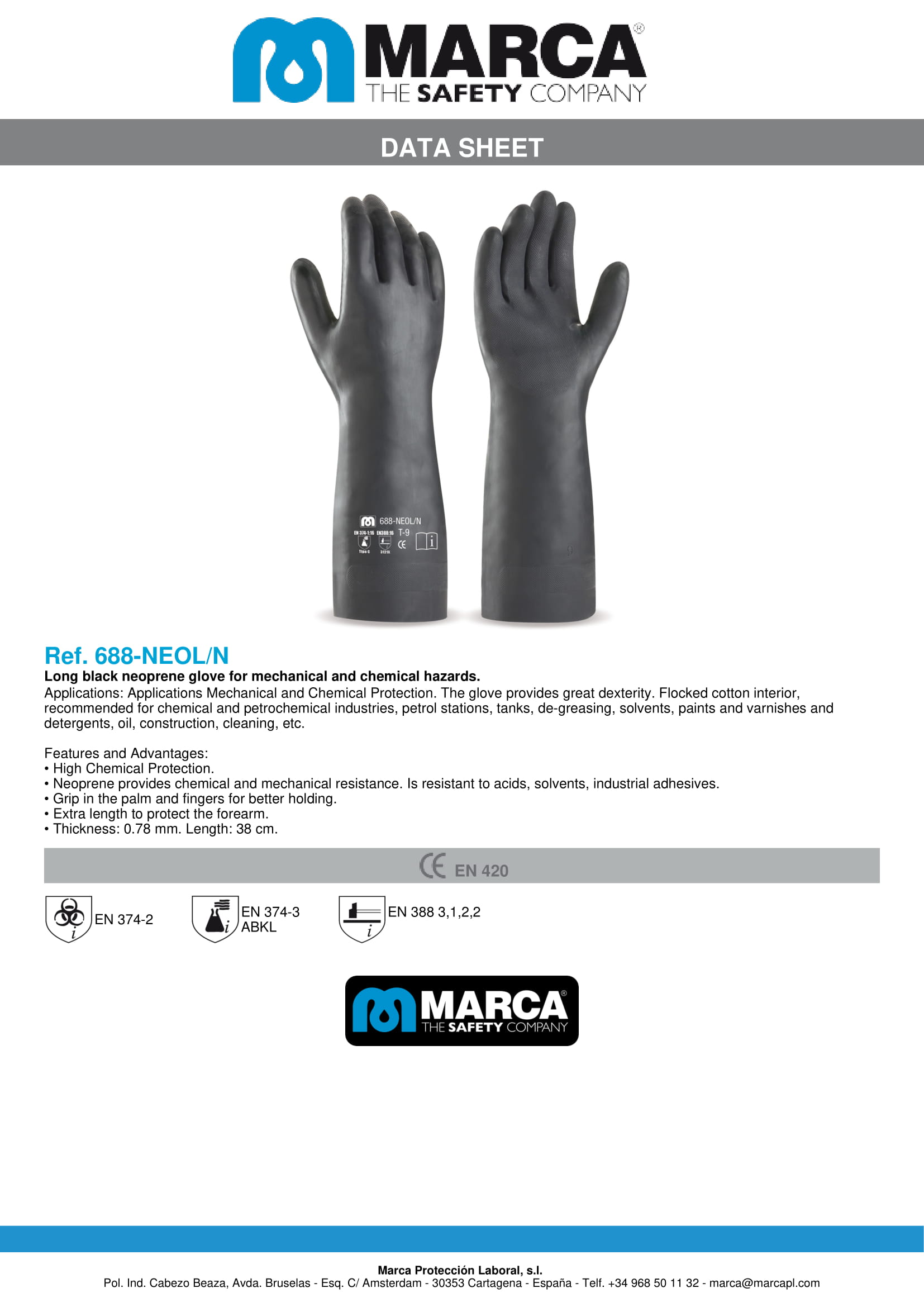

688-NEOL/N
Long black neoprene glove for mechanical and chemical hazards.
688-PVC27/Q
Rigid outer knee pad
688-PVC35/Q
Rigid outer knee pad
688-PVC27B
Rigid outer knee pad

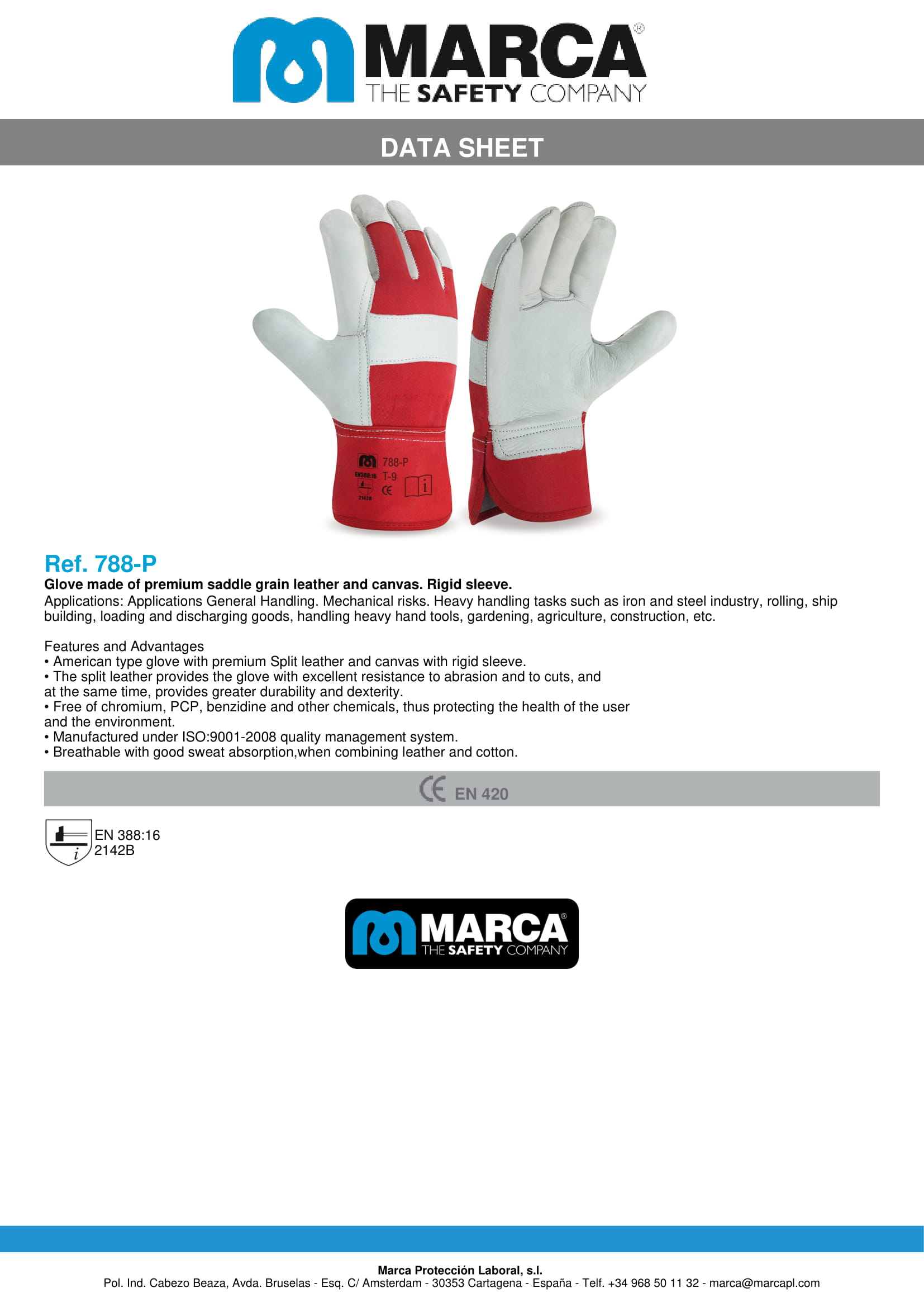

788-P
Glove made of premium saddle grain leather and canvas. Rigid sleeve.
788-MX
Grain leather palm and split leather sleeve with Kevlar seams.

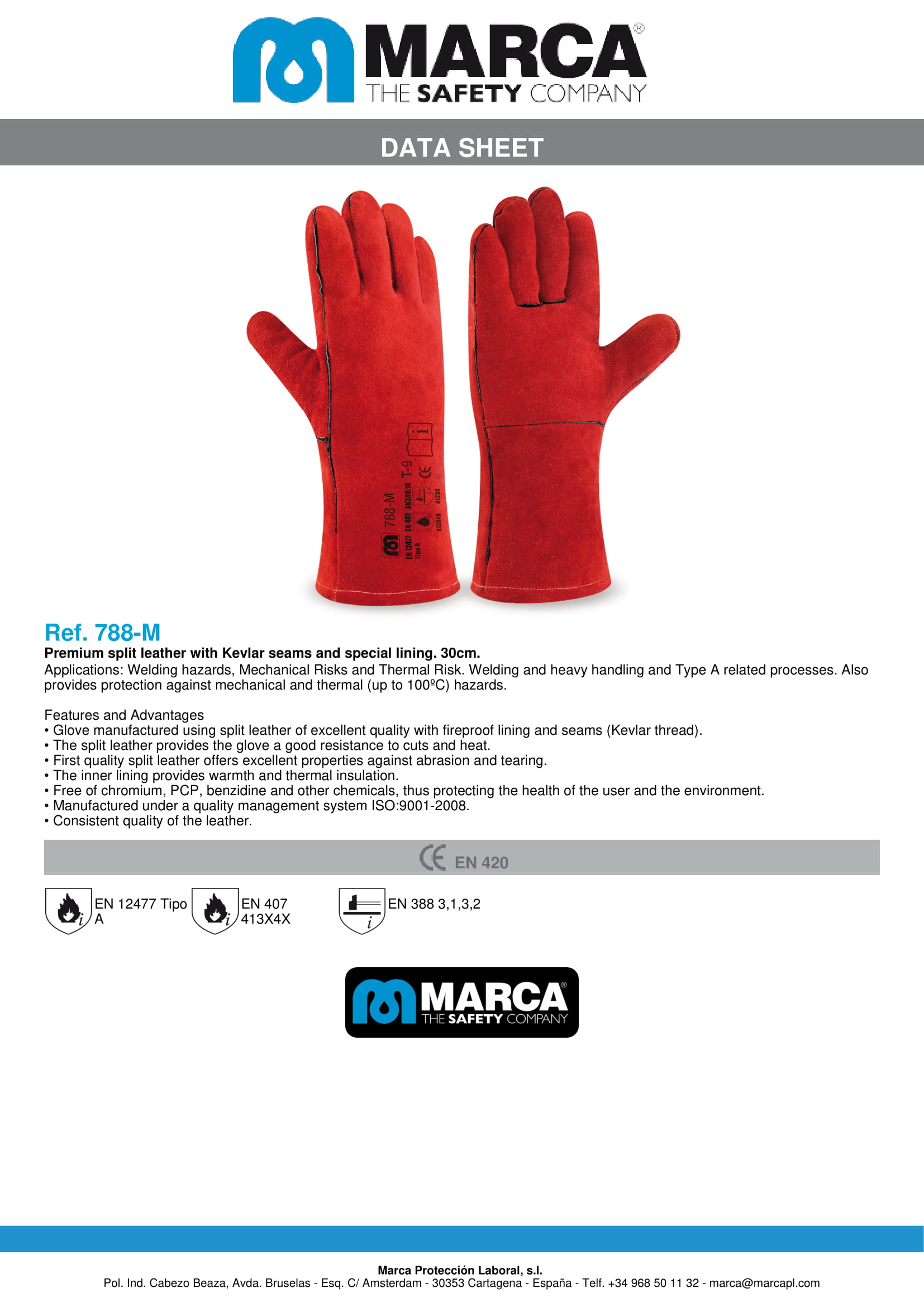

788-M
Premium split leather with Kevlar seams and special lining. 30cm.

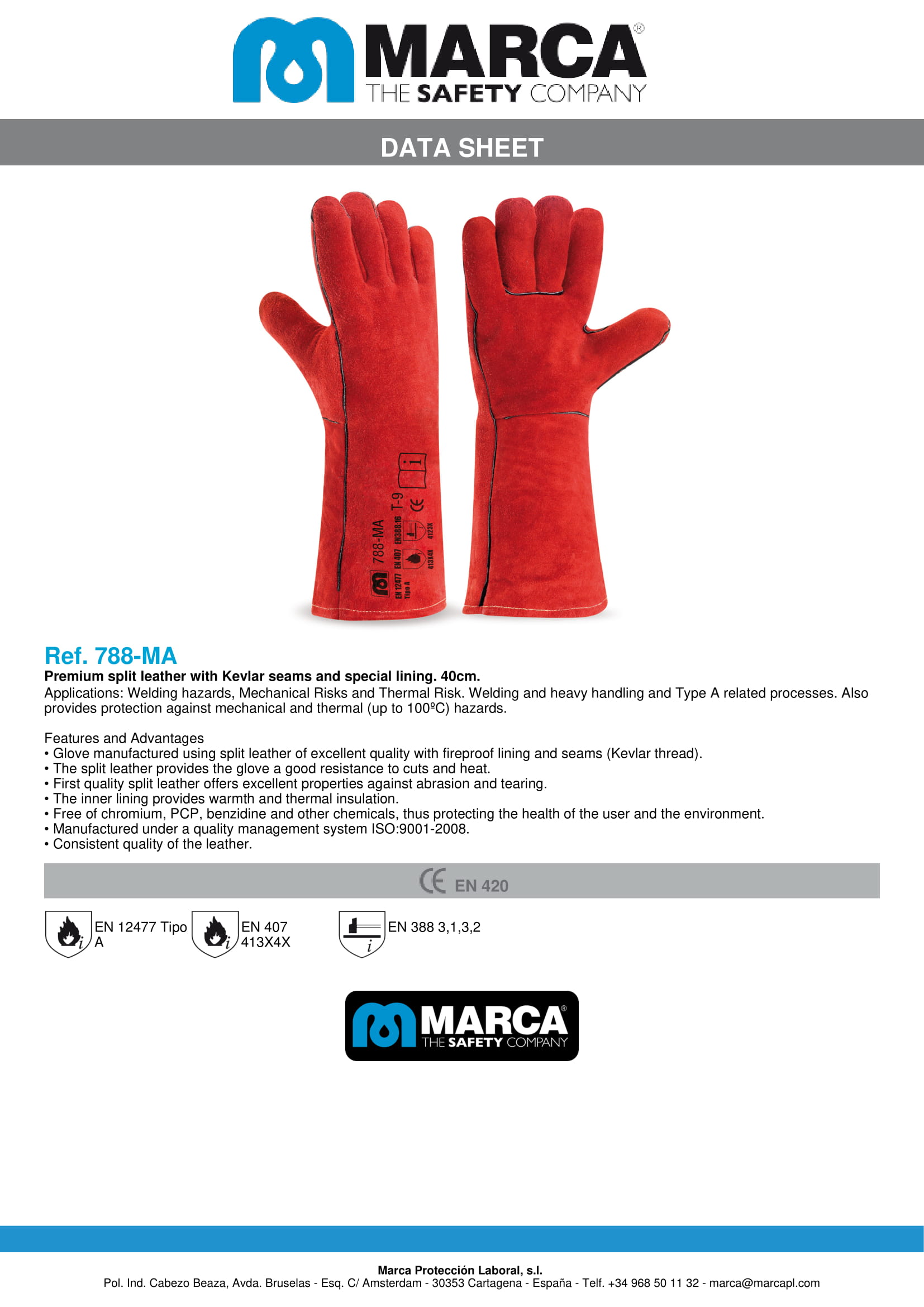

788-MA
Premium split leather with Kevlar seams and special lining. 40cm.

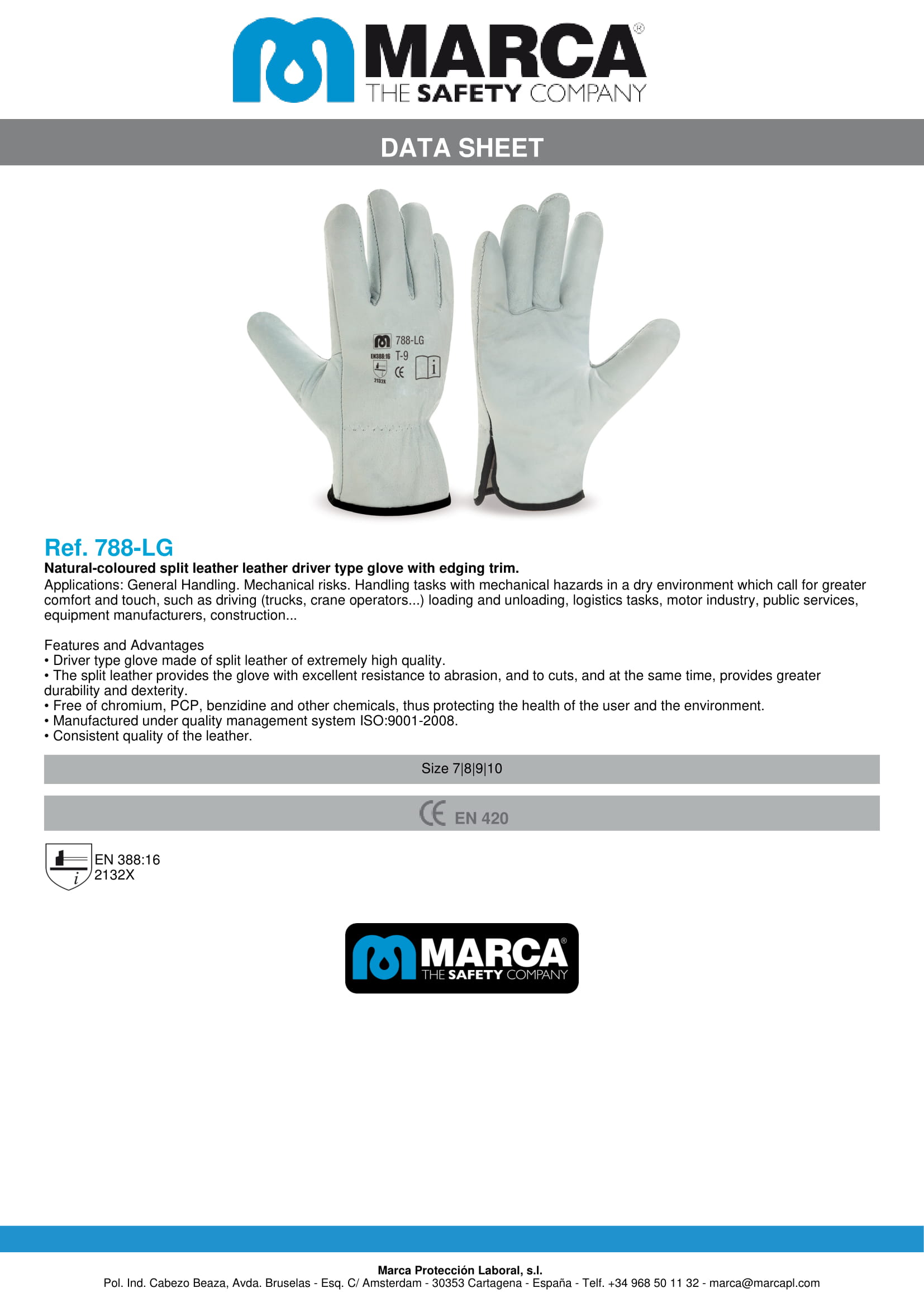

788-LG
Natural-coloured split leather leather driver type glove with edging trim.

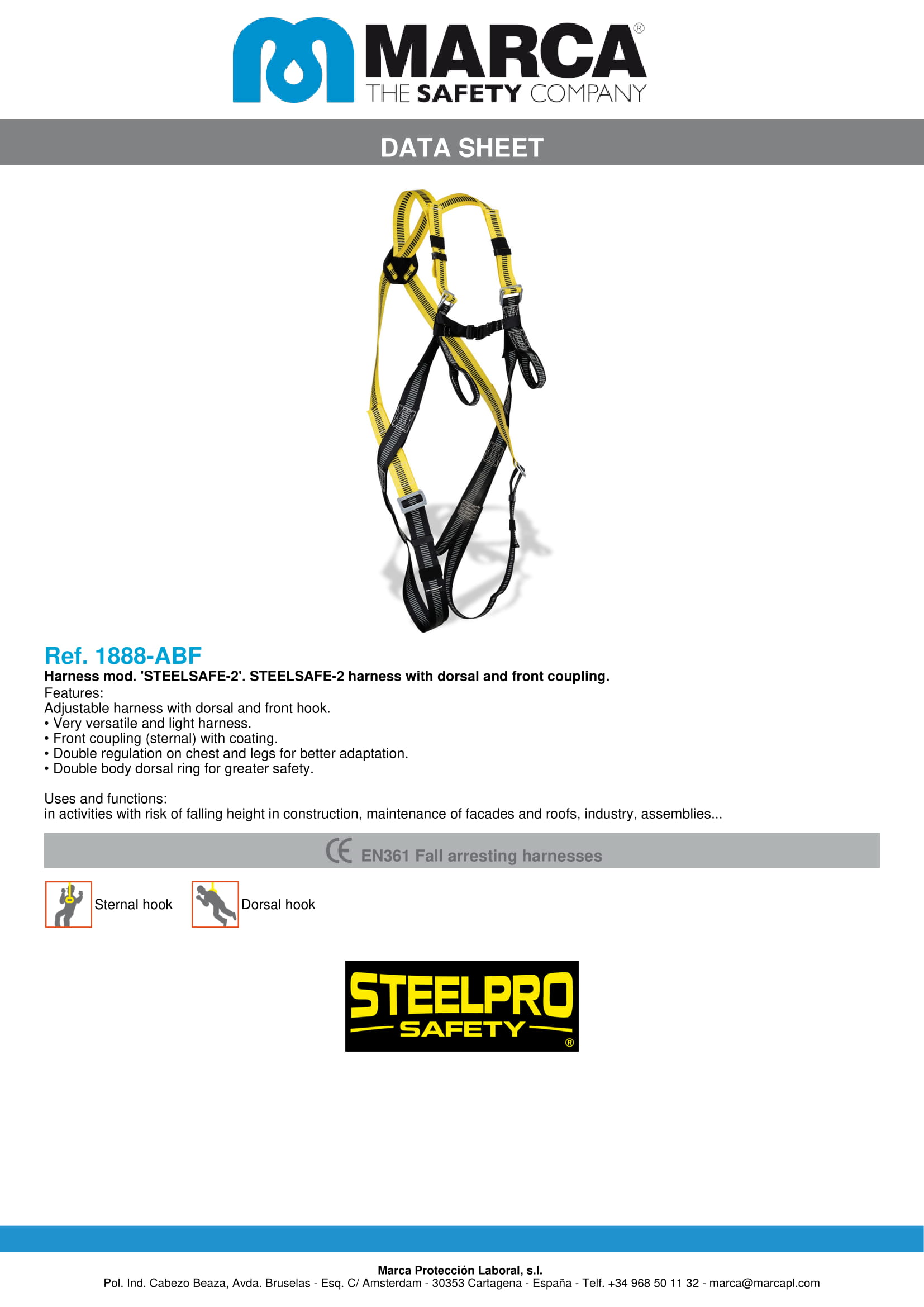

1888-ABF
Harness mod. 'STEELSAFE-2'. STEELSAFE-2 harness with dorsal and front coupling.
1888-AC
Harness mod. 'STEELTEC-1'. Harness STEELTEC-1 with dorsal and sternal hook and adjustable positioning belt.

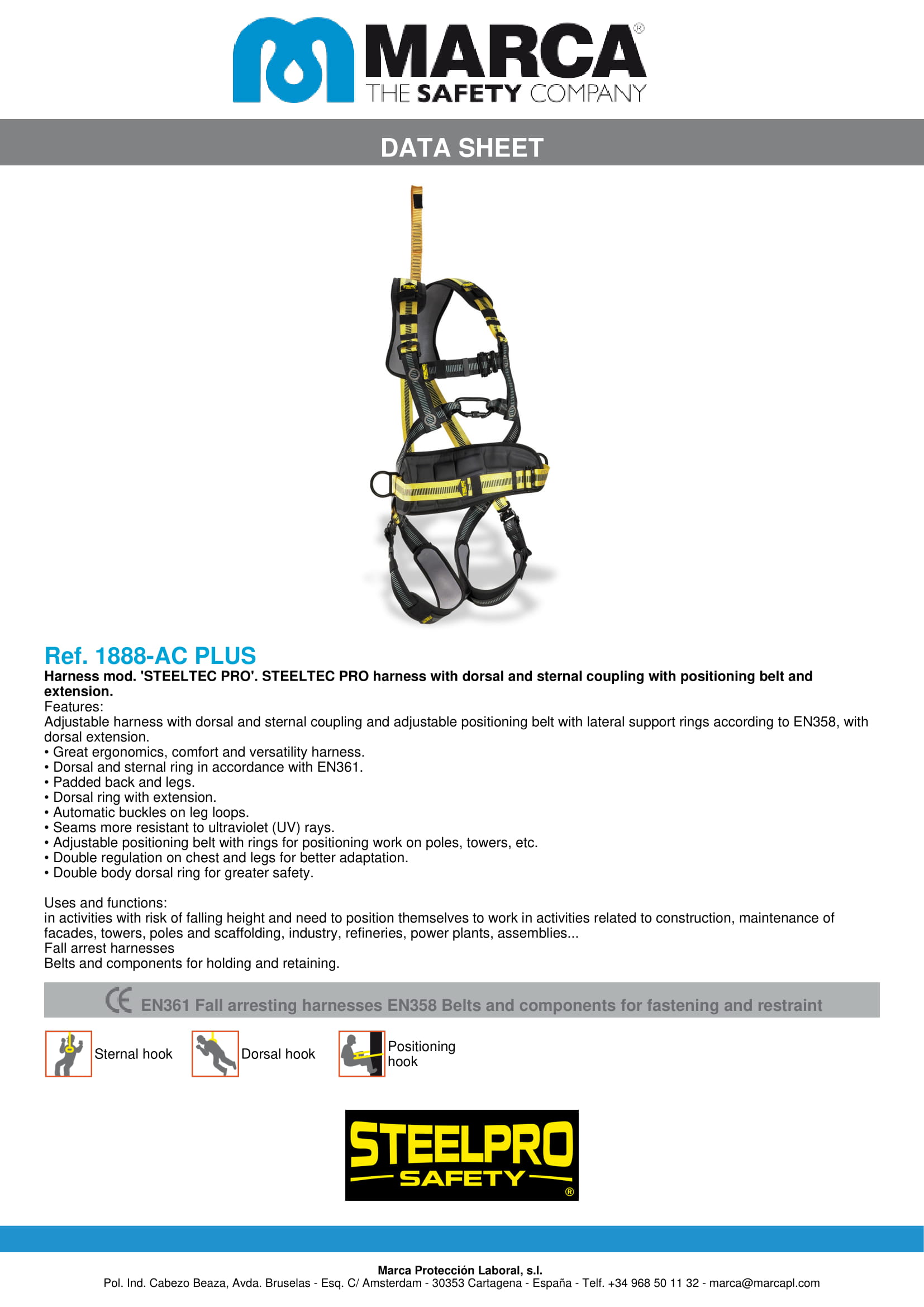

1888-AC PLUS
Harness mod. 'STEELTEC PRO'. STEELTEC PRO harness with dorsal and sternal coupling with positioning belt and extension.

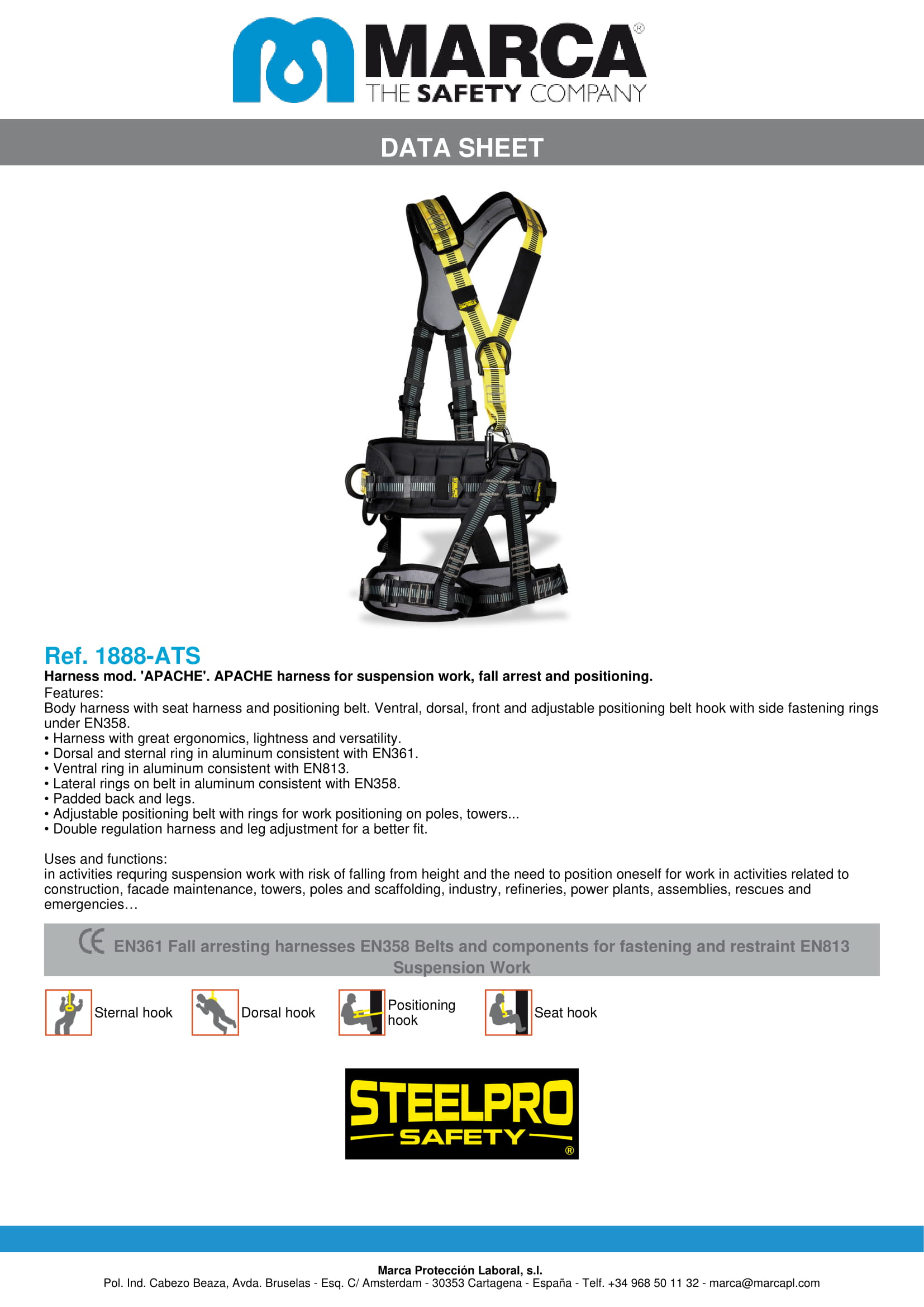

1888-ATS
Harness mod. 'APACHE'. APACHE harness for suspension work, fall arrest and positioning

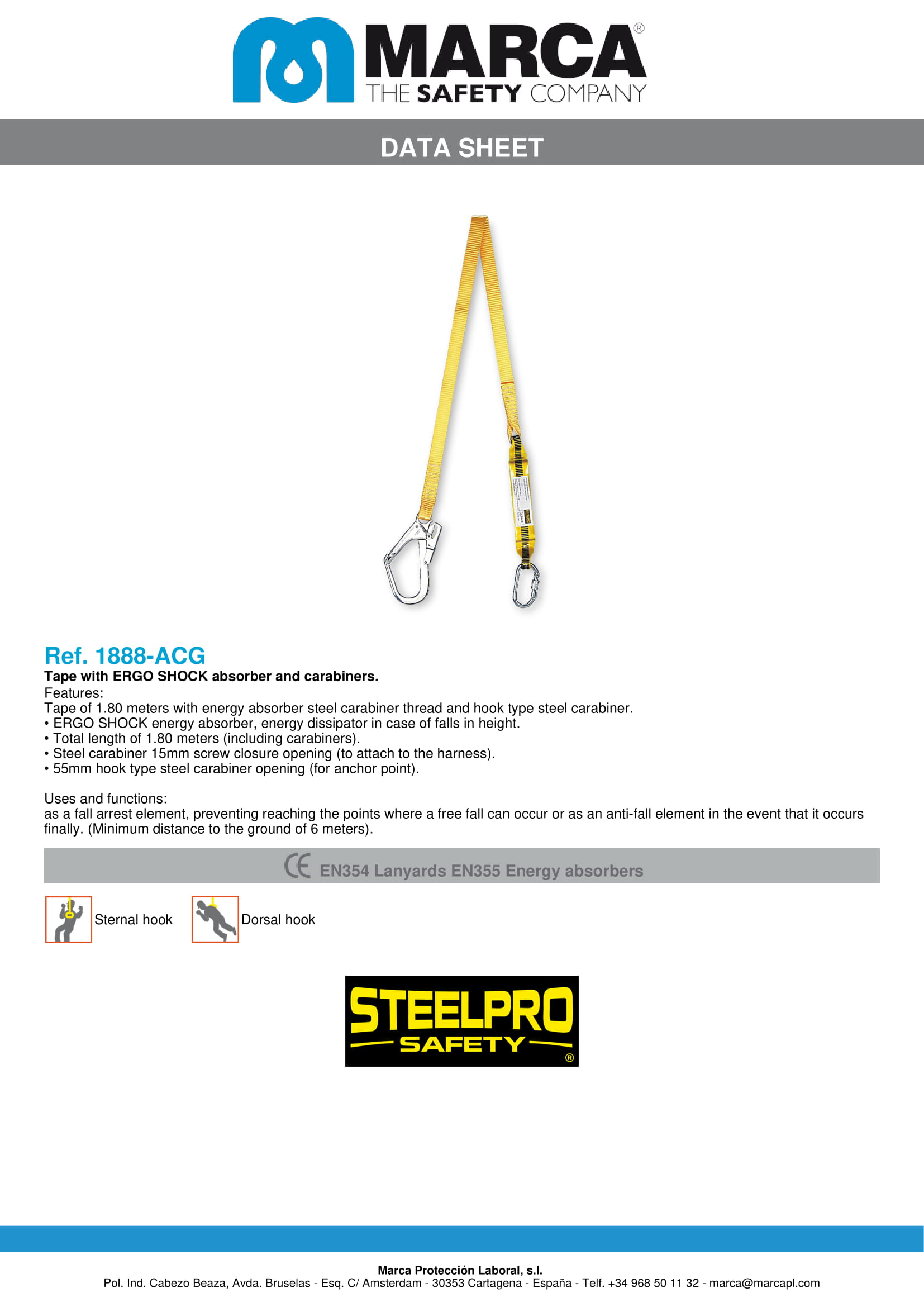

1888-ACG
Tape with ERGO SHOCK absorber and carabiners

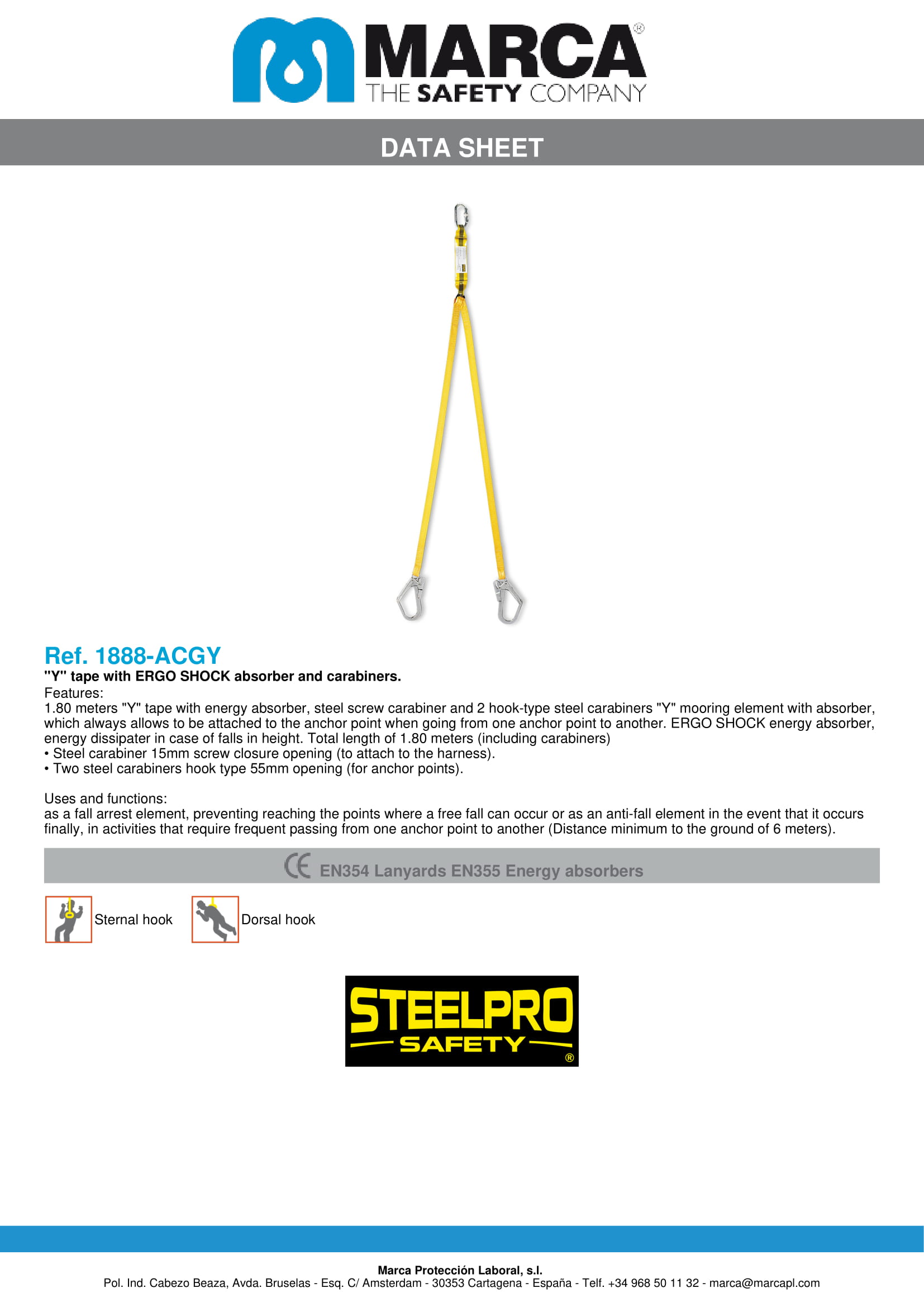

1888-ACGY
"Y" tape with ERGO SHOCK absorber and carabiners.

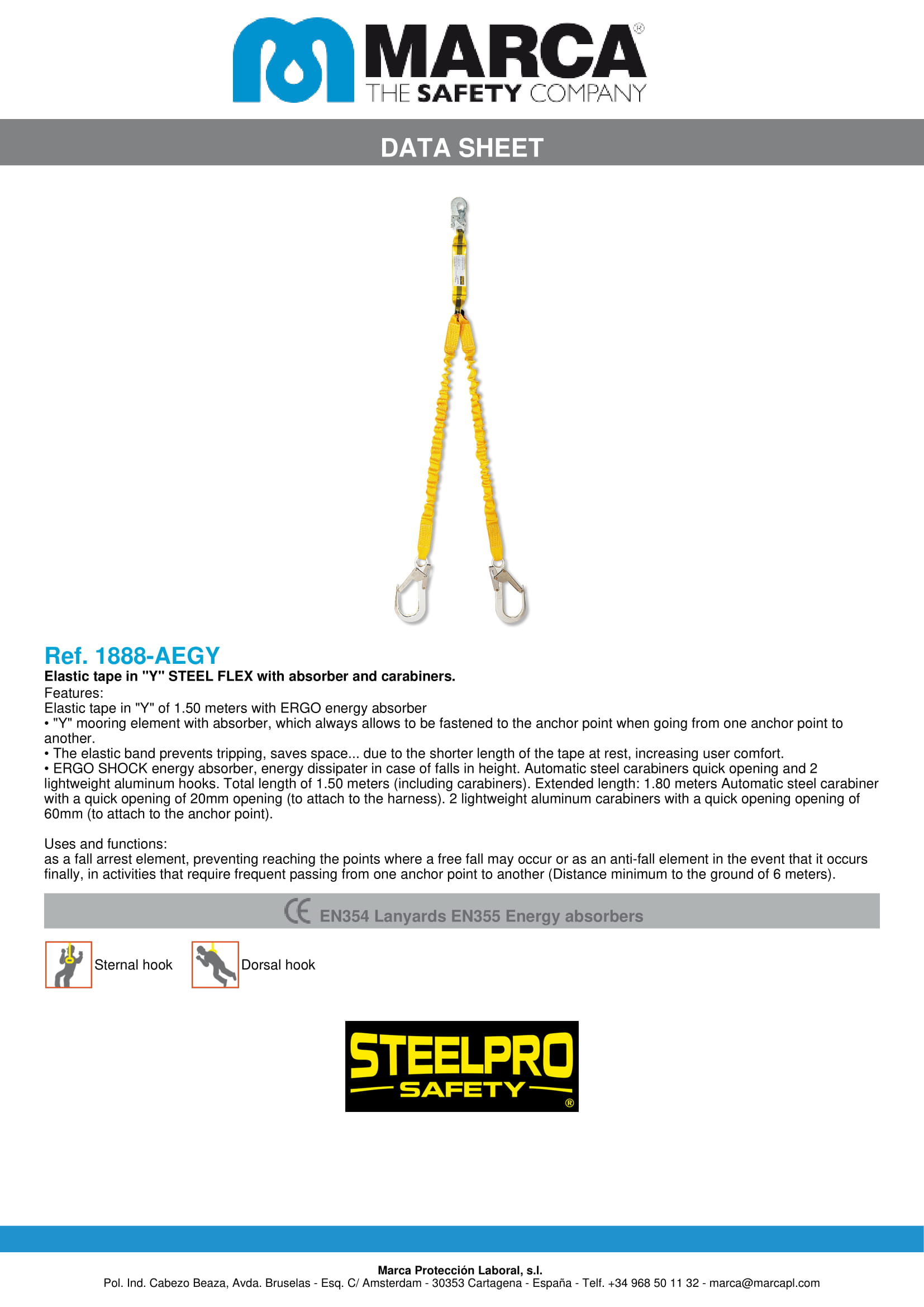

1888-AEGY
Elastic tape in "Y" STEEL FLEX with absorber and carabiners

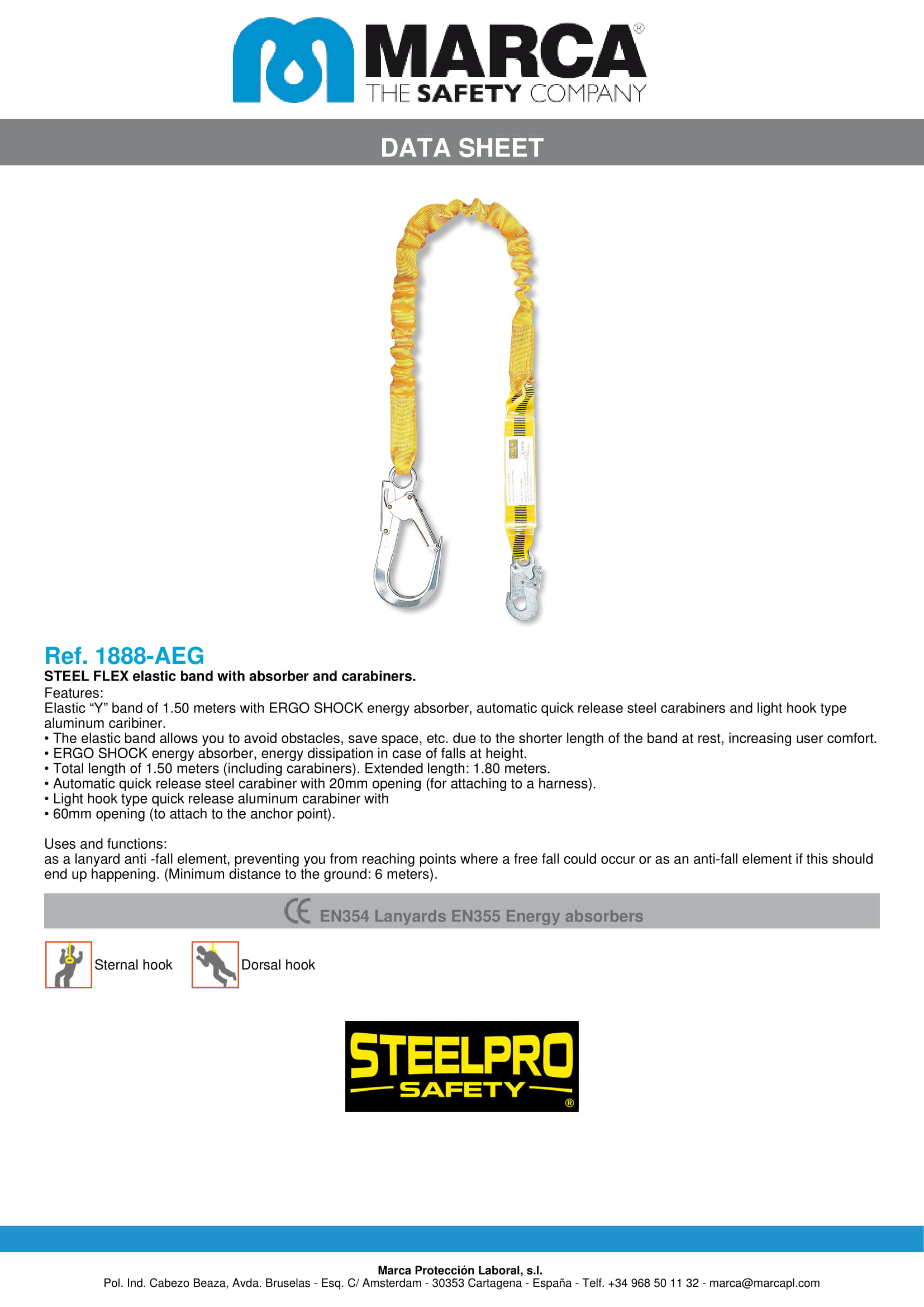

1888-AEG
STEEL FLEX elastic band with absorber and carabiners.

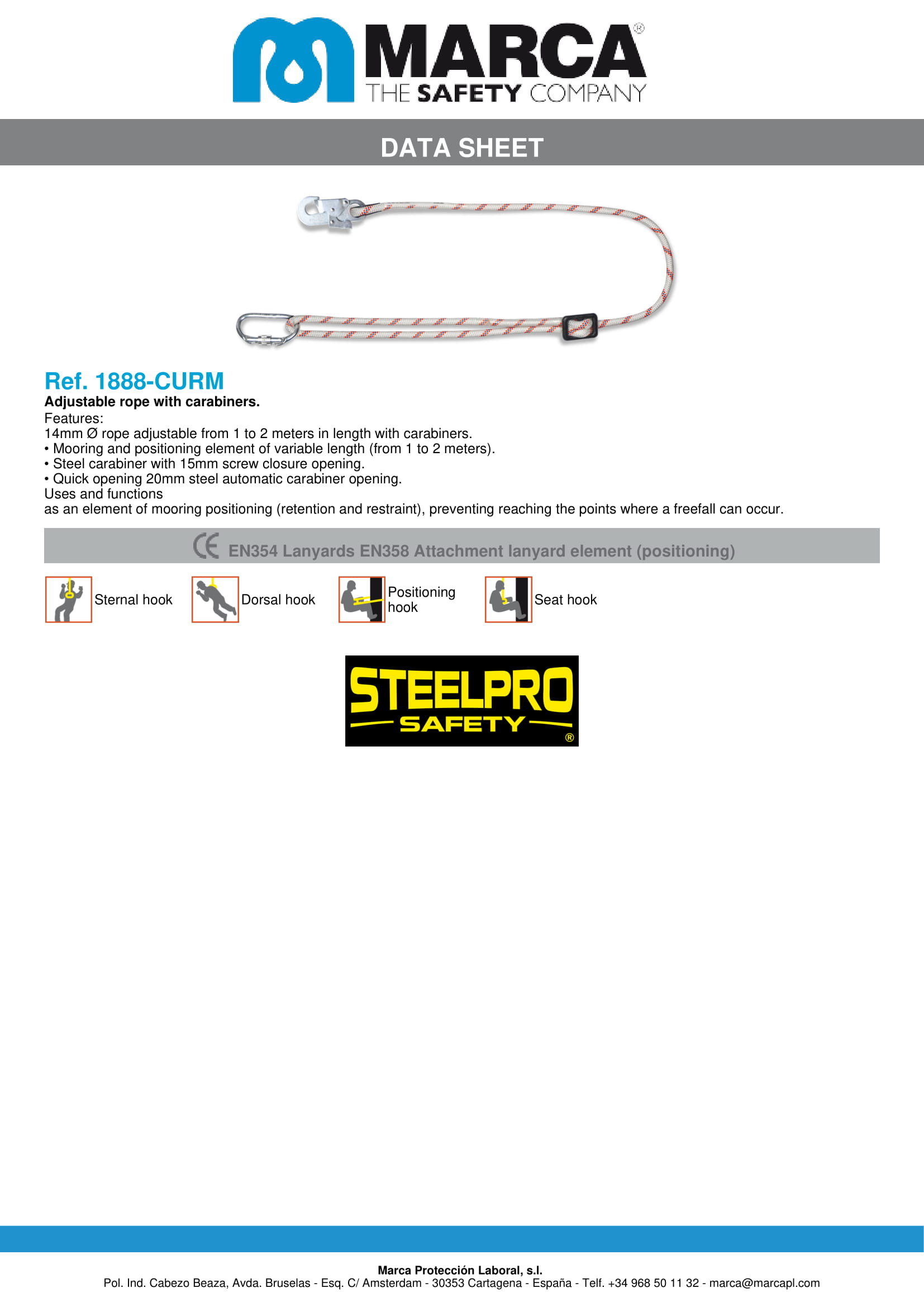

1888-CURM
Adjustable rope with carabiners.
1888-LVH20
Horizontal Lifeline (provisional transportable anchoring device).
1888-B10C
10 meter Ribbed Retractable Device With Ribbon

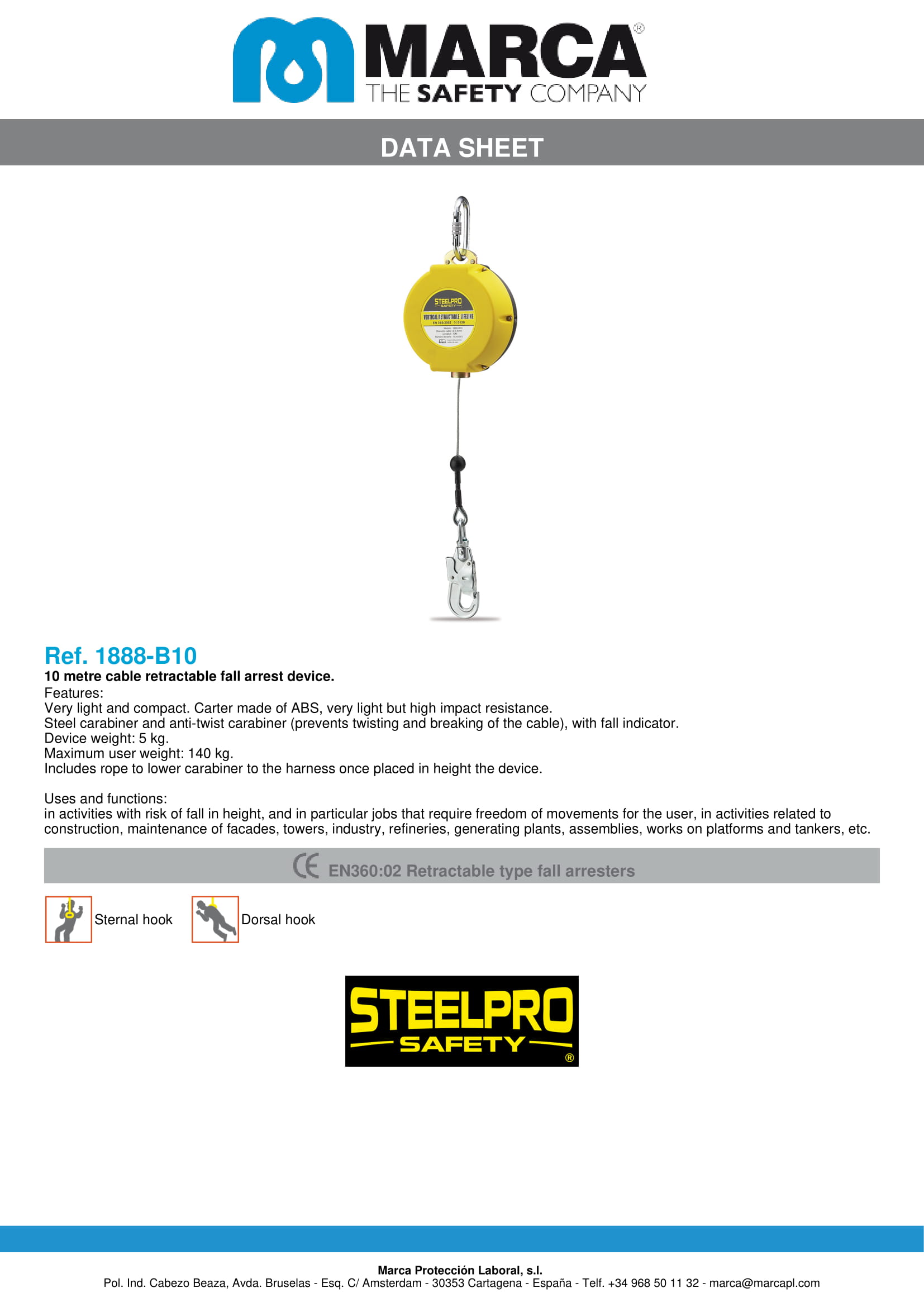

1888-B10
10 metre cable retractable fall arrest device.

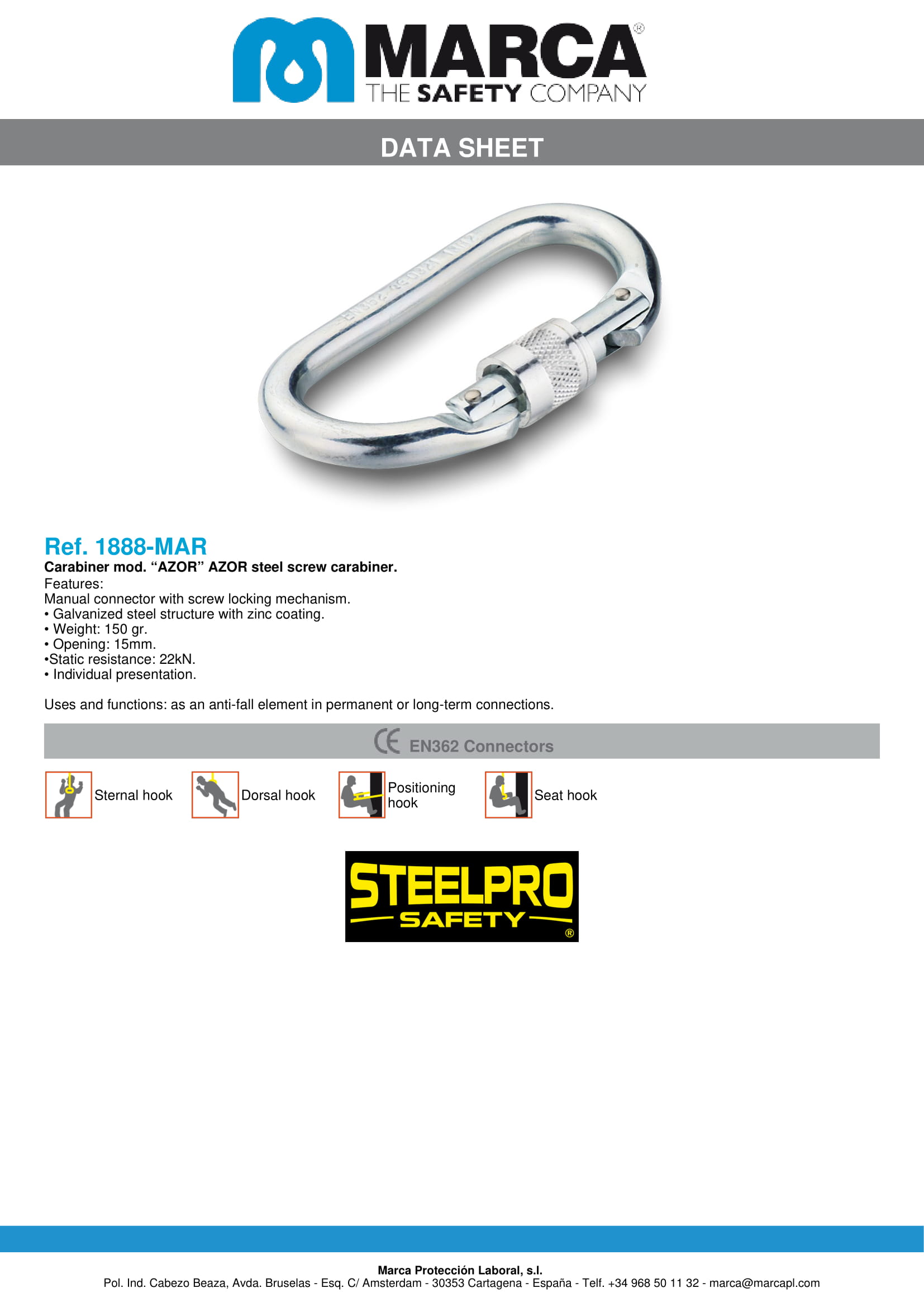

1888-MAR
Carabiner mod. “AZOR” AZOR steel screw carabiner.

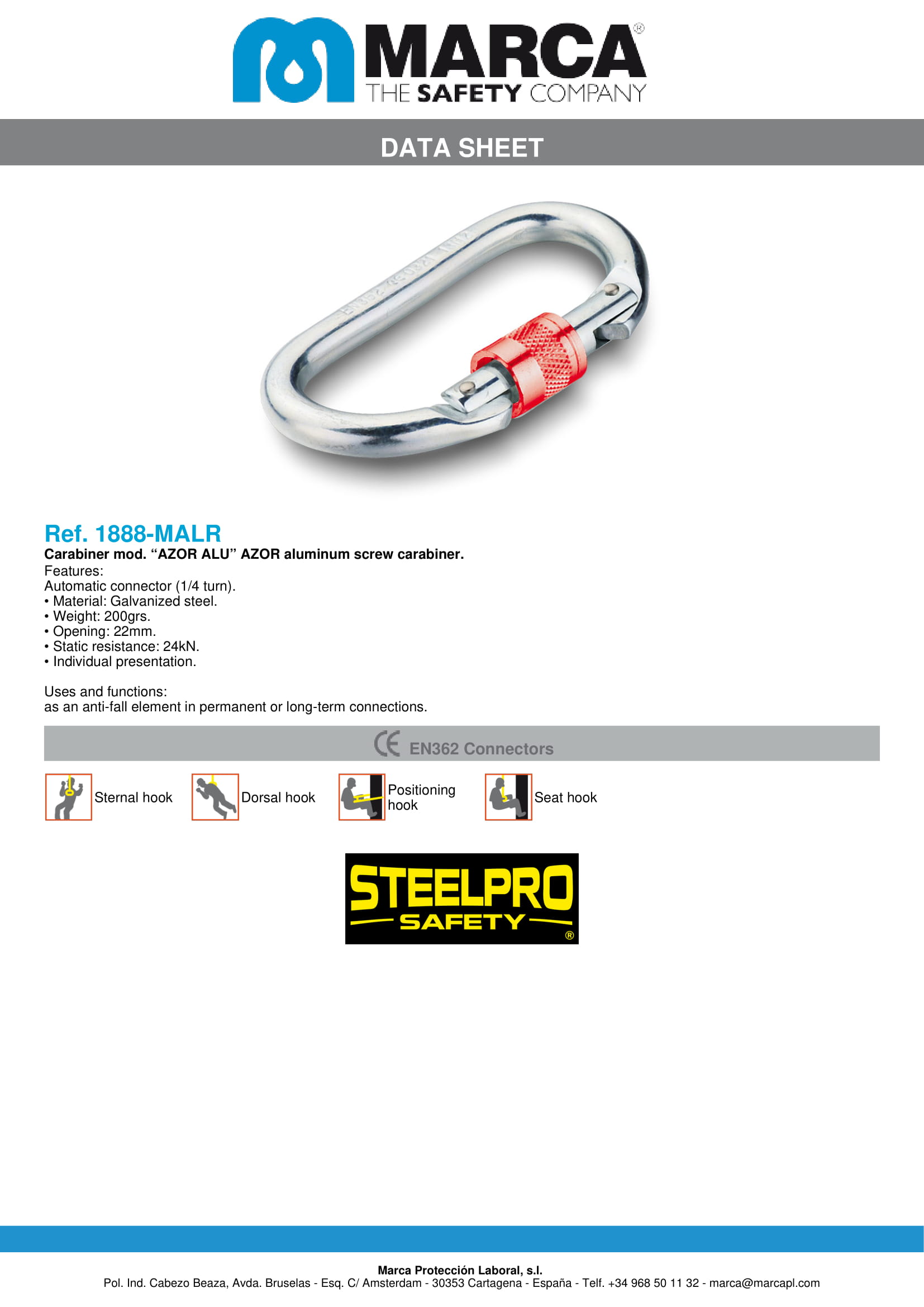

1888-MALR
Carabiner mod. “AZOR ALU” AZOR aluminum screw carabiner.
1988-TD
Mod. 'EAR MAX'. Disposable earplug.
1988-TRC
Rigid outer knee pad

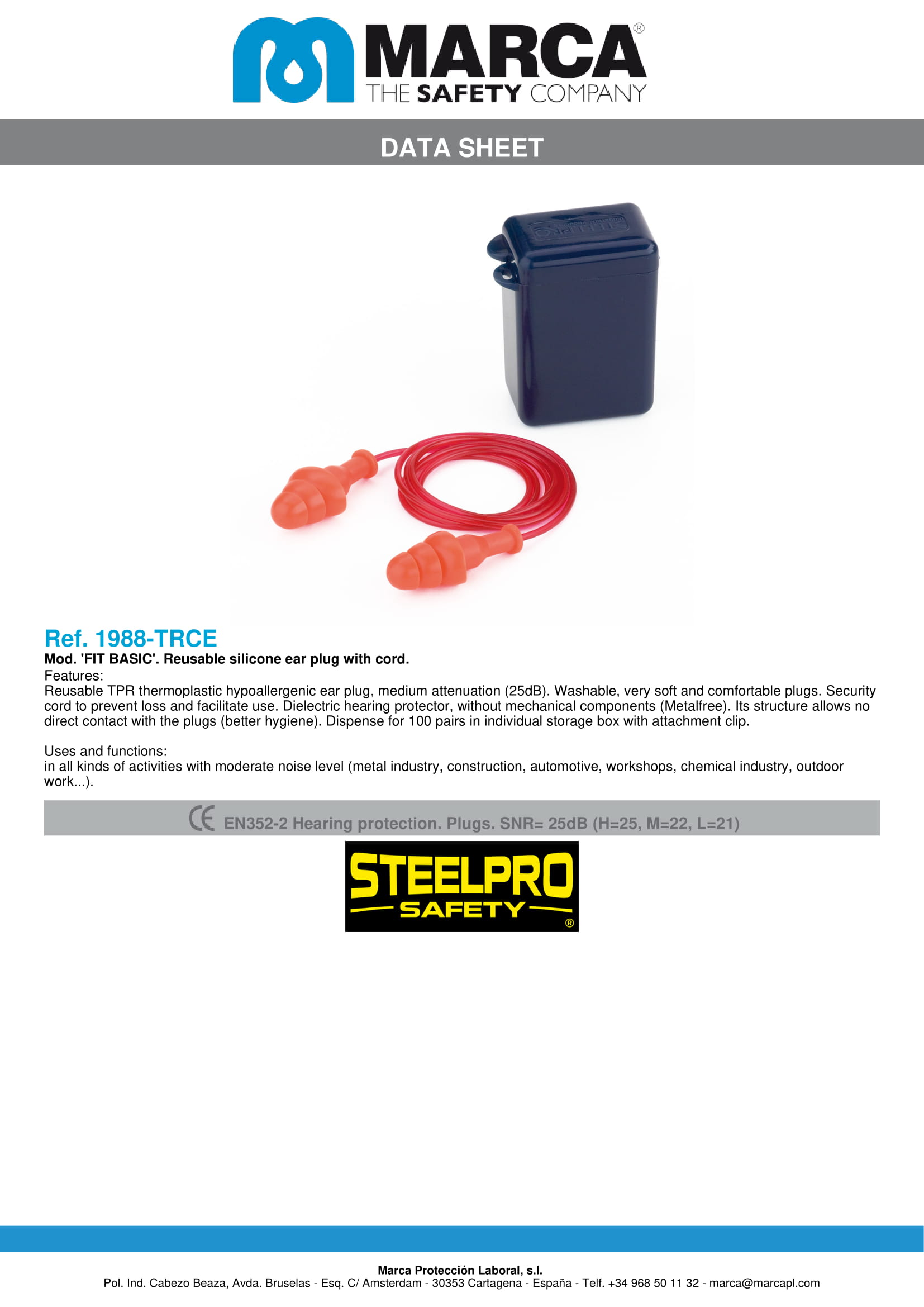

1988-TRCE
Mod. 'FIT BASIC'. Reusable silicone ear plug with cord.
1988-OE
Mod. “THUNDER”. Mid- high attenuation earmuff.
1988-OS
Mod. 'SAMURAI'. Mid - high attenuation earmuff.
1988-OSC
Mod. 'SAMURAI'. High attenuation earmuffs.
1988-OP
Mod. 'THUNDERSTRUCK'. Very high attenuation earmuff.
1988-OC
Mod. 'THUNDERSTRUCK'. Earmuff for helmet, medium attenuation.
1988-OJ
Mod. 'JUMBO'. Very high attenuation earmuff.

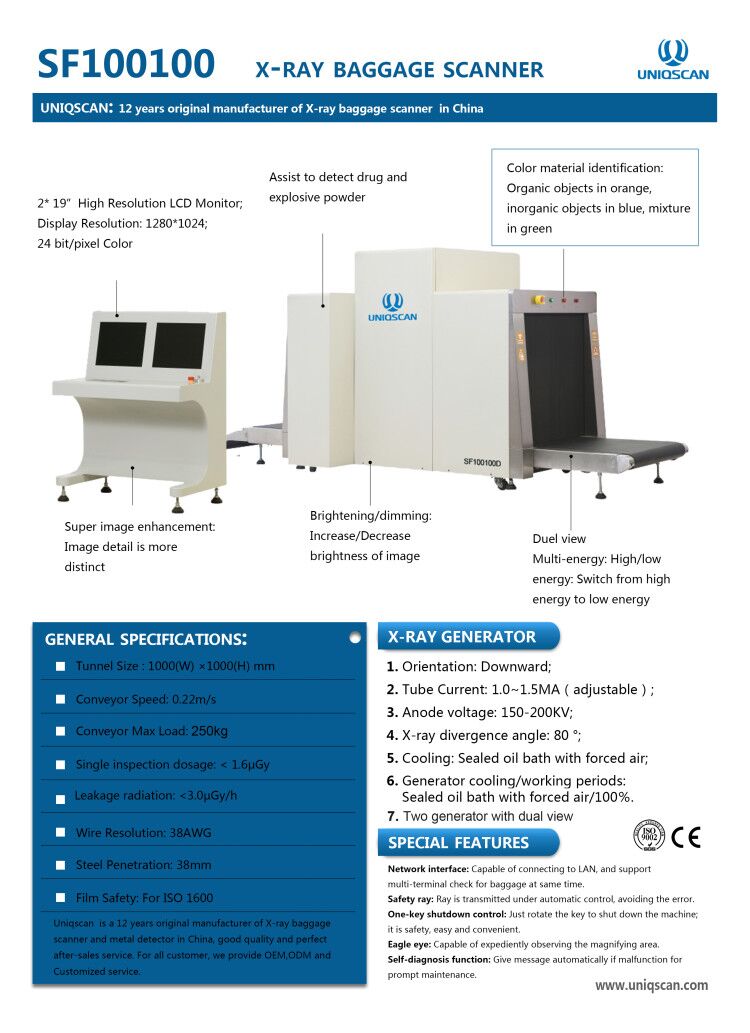

SF100100
X-ray Baggage Scanner > Double Energy2088-CTV
Mod. “THOR (Ventilated)”. Ventilated protection helmet for the industry in white color, closing roulette, textile harness 6 points.

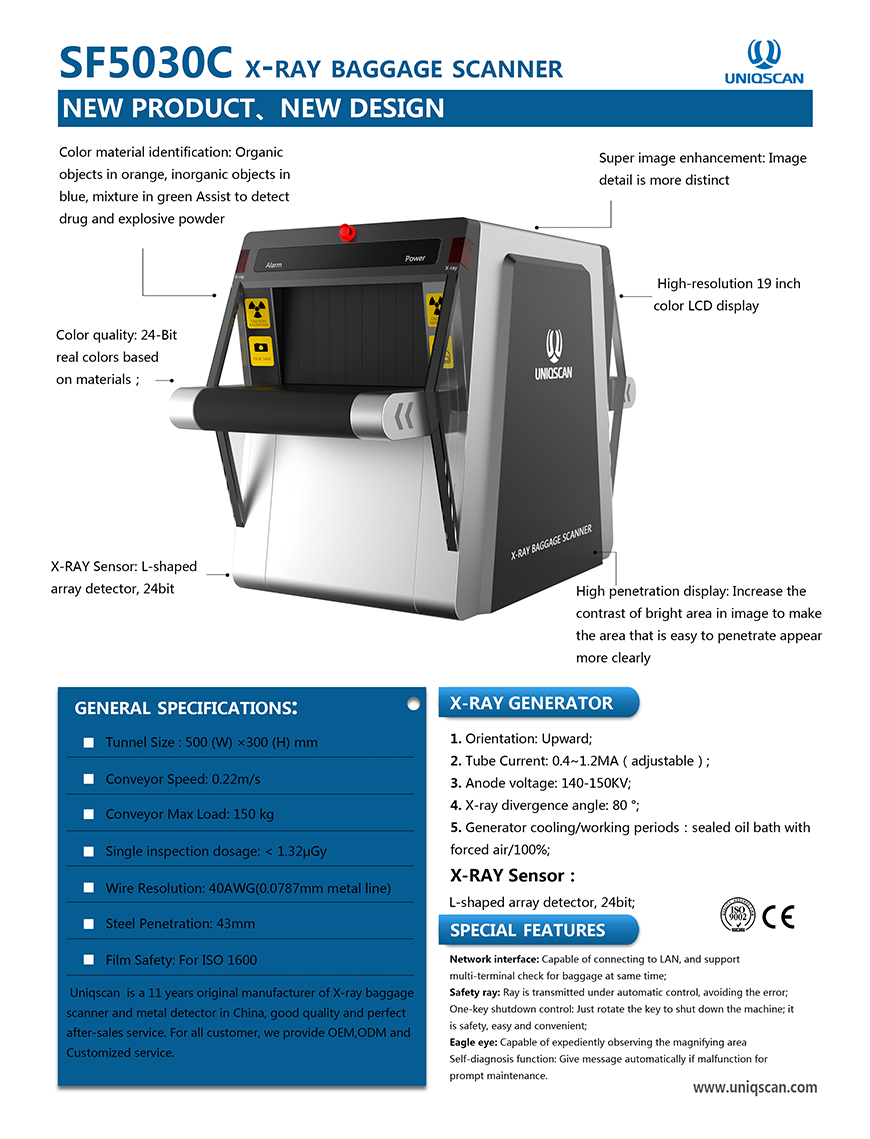

SF5030C
X-ray Baggage ScannerXR3D-18D
Dual source scanner
The XR3D-18D is a dual source scanner equipped with our cutting-edge operating system BioSans™ and ergonomic interface. Currently our largest scanner, it is designed to scan medium to large freight and cargo.
With the same tunnel opening of 1840 mm wide x 1900 mm high (72.4” x 74.8”) as the XR3D-18, the XR3D-18D is the ideal cargo solution for transportation and border operations where the screening of medium to large cargo is required.

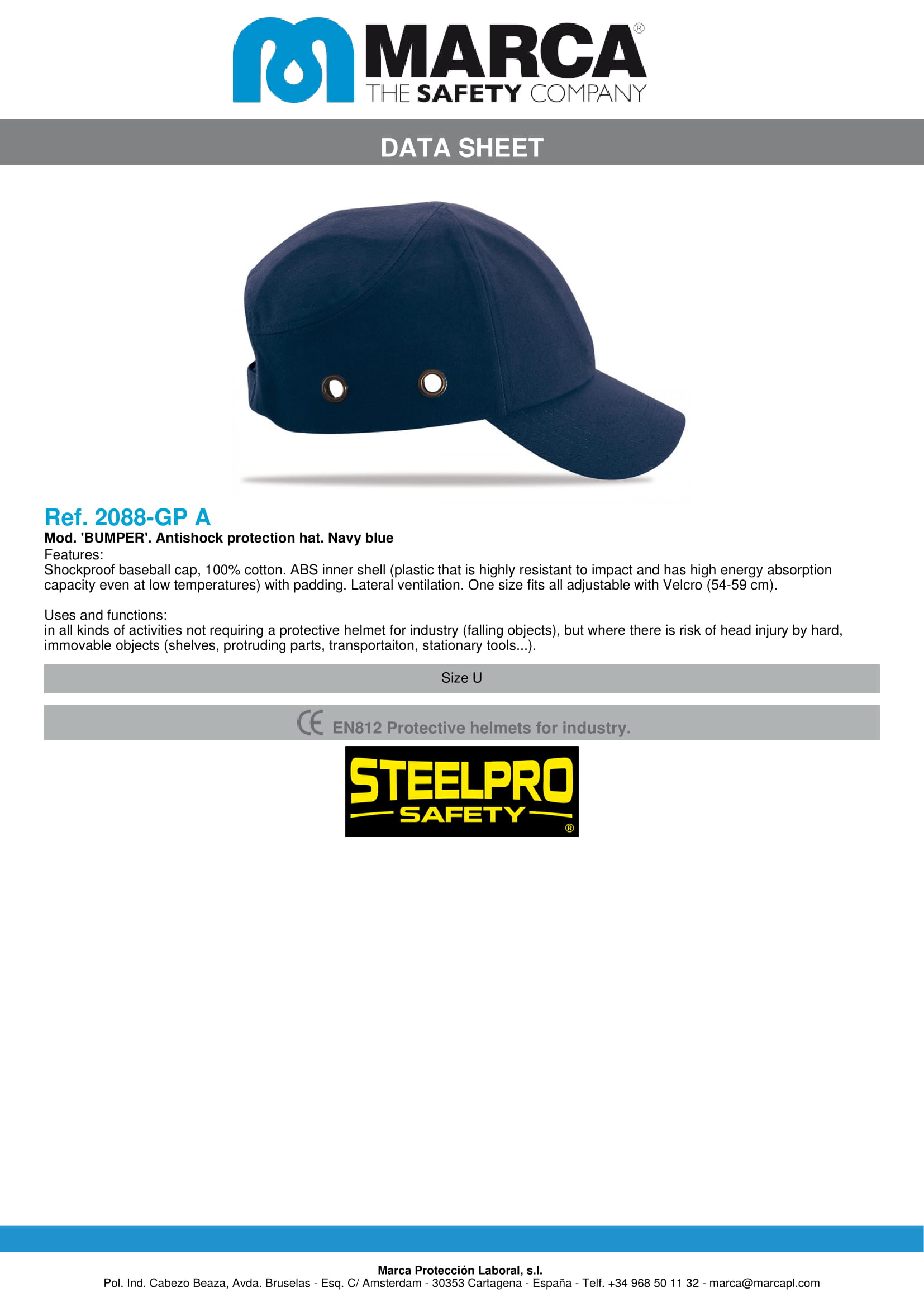

2088-GP
Mod. 'BUMPER'. Antishock protection hat. Navy blueUC600
UC600 Walk through metal detector (6/12/18 zones)
UC600 Walk through metal detector (6/12/18 zones) | |||
Parameters | |||
Power Supply |
AC85V-264V / 47.5-60Hz |
||
Working temperature |
-20℃--+50℃ |
||
Working Frequency |
4KHZ—8KHZ |
||
Standard External size |
2230mm(H)X830mm(W)X730mm(D) |
||
Standard
Internal size |
2010mm(H)X700mm(W)X500mm(D |
||
Package
size for door panels |
2260*750*260mm
*1ctn |
||
Package
size for control unit |
780*390*250m*1ctn |
||
Gross
weight |
75KG |
||
Characteristic & Function |
|||
6/12/18 detecting zones, Simultaneous alarm from multi- zones |
|||
Sensitivity adjustable: Each zone has 100 sensitivity level |
|||
Small LCD screen, English operating software, easy to operate. |
|||
Using high density fireproof material |
|||
LED alarm: Two Sides LED indicator , easily show where the metal is. |
|||
Automatically count passengers and alarm times |
|||
Password protection, only the authorized person can operate. |
|||
Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. |
|||
Anti-interference function, using advanced interactive transmitting and receiving to avoid interference. |
|||
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc. |
|||
Using high density fireproof material |
|||
Program Self-diagnostic when power on, no need initial or periodic calibration |
|||
Modularization design, easy for maintenance and replacement |
|||
Sensitivity Test piece: One yuan Coin, omnidirectional detection |
|||
4-8 hours backup battery (Option) |
|||
Use domain |
|||
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc |
ROLP-FIRE
Roshni LP- Roshni LP
- Wired siren for interior and exterior fire
- Loudness 103dB at 1m
- 32 alarm tones
- High base for easy installation
- Power supply 24 VDC
Description
- Roshni LP
- Wired siren for interior and exterior fire
- Output 102dB(A)
- 32 selectable tones
- Volume control
- Automatic synchronisation
Specifications
Brand | Maxfire-rolp |
Consumption (using tone 3) | 12mA |
Sound intensity | 102db(A) (tone 3) |
Tones | 32 tones |
Volume control | 10dB |
Monitoring | Reverse polarity |
IP protection | IP54 (Shallow Base) IP65 (Deep/U Base) |
Weight | 250gr. |
Material | ABS |
Operating temperature | - 25ºC - +70ºC |
Colour | Red |
Contents

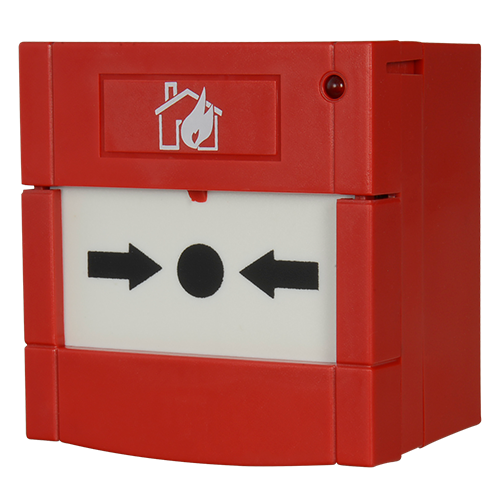

CCP-AB-LED
Conventional resettable push button
- Conventional resettable push button
- Certificate EN54
- Led indicator
- Recessed installation or surface
- Resettable key
- Includes acrylic cover
Description
- Maxfire
- Conventional resettable push button
- Certificate EN54
- Led indicator
- Recessed installation or surface
- Resettable key
- Includes acrylic cover
Specifications
Brand |
Maxfire CCP-AB-LED |
Power supply | 24/30VDC |
Consumption | 2A max |
Activation indicator | Yes (permanent LED) |
Class block terminals | 300V 10A (IEC 380V 16A) |
Material / Color | ABS fire retardant - Class 94V0, RAL3001 |
Temperature | -30ºC - +70ºC |
Mounting | Recessed or surface |
IP protection |
IP24 |
Weight | 160 gr. |
Normative | EN 54-11:2001/A1:2005 |
Contents
CROSSFIRE-4-LCD
4 Zone Conventional Fire Alarm Panel- 4 Zone Conventional Fire Alarm Panel
- 2 siren outputs 1 alarm relay, 1 failure relay
- Output for repeater (compatible with GST116RP and Crossfire RP)
- Up to 30 detectors per zone
- LCD screen and advanced programming menu
Description
- Maxfire
- Conventional fire alarm panel of 4 zones
- Certificate EN54-2 and EN54-4
- 2 independent siren outputs
- 2 auxiliary relay outputs (alarm and failure)
- Individual output for repeaters
- Capacity for 2 12V batteries
- 3 access levels
- LCD display with menu for advanced programming
- Test zone
- Evacuation
- Disable zones
- Day / Night mode
- Cross detection
- Map zones to sirens and/or fire relay
- Map breakdowns to failure relay
- Configurable pre-alarm times and siren rings
Specifications
Primary power supply | Switched-mode power supply 100-240V AC 50-60 Hz 1,5A |
Backup power supply | 2 batteries 12VDC (up to 7.2 Ah). Ensures minimum 72 hours duration. |
Number of zones | 4 zones, up to 30 detectors by area. |
Siren outputs | 2 siren outputs 24VDC. Independent and monitored open collector outputs |
Relay outputs | 2 Relay outputs: 1 alarm output and 1 failure output. Both support 24VDC 1A max. |
End of line resistance | Areas fully monitored by end-of-line resistance (4.7K) |
Auxiliary Output Voltage | 24VDC. Protected by resettable electronic fuse 300mA |
Protection Index | IP40 |
Temperature | -5ºC~+45ºC |
Material and colour | ABS, colour: White |
Dimensions | 321 x 286 x 90 mm |
Weight | 1,6Kg |
Recommended cable | Fire cable with a minimum section of 1.0mm (18AWG). |
Contents

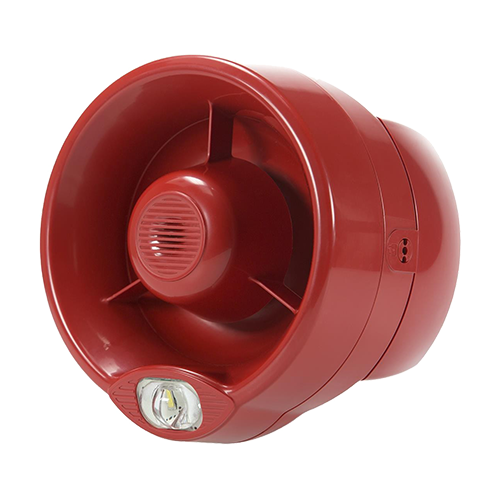

ADV-AXIS-CWSV
Advanced conventional siren and flash
- Advanced conventional siren and flash
- Needs ADV-AXIS-WSM module to connect to analog loop
- Maximum sound pressure level 100dB
- 4 volume levels and 32 configurable tones
- Certificates EN54-3 and EN54-23
Description
- Advanced
- Siren and conventional flash
- Needs ADV-AXIS-WSM module to connect to analog loop
- Equipped with 4 volume adjustment levels and 32 recognized tones that can be configured through the control equipment or locally on the siren
- Certified in EN54-3 and EN54-23
- Two-stage alarm capability
Specifications
Brand | Advanced |
Voltage DC | Nominal Relay Switching current 24V (18~40V) |
Activated current load (high vol) | Maximum acoustic output: 11-25mA @ 24VDC |
Acoustic frequency range | 400-2900Hz |
Sound power | 100dB to 1m |
Visual alarm frequency | 0.5Hz or 1 Hz |
Operating temperature range | -25ºC ~ +70ºC |
Humidity (non condensing) | 95% RH |
Dimensions | 132 x 126 x 92 (H x W x D) |
Weight | 290g |
IP protection | IP65 |
Certification | EN54-3 y EN54-23 |
Contents
AJ-HUB2-B
Professional alarm panel- Professional alarm panel
- Ethernet connection and dual SIM GPRS
- 868MHz Jeweller Wireless
- Up to 100 wireless devices
- 25 IP cameras or video recorder channels
- Mobile App and PC Software
XS-V5441M-IP
IP Monitor for Video Intercom
- IP Monitor for Video Intercom
- 10" TFT Screen
- Bidirectional audio
- Built-in memory 8GB
- 6 Alarm inputs
- Surface mounting
Description
- X-Security
- TFT screen for video intercom of 10"
- Integrated speaker and microphone
- Bidirectional audio
- 6 alarm inputs
- 8GB internal memory
- Image capture and recording
- Multiple screen extensions
- TCP/IP Communication
- Internal calls between devices
- Can be powered by PoE
- Surface mounting
Specifications
Brand | X-Security |
Operating system | LINUX OS |
LCD | 10" 1024x600 Capacitive |
Operation mode | Tactile Buttons |
Inputs | 6 Configurable alarm entries |
Audio | Bidirectional audio with microphone and speaker |
Remote access | Mobile App or SmartPSS software |
Memory | Internal up to 8GB |
Network interface | TCP/IP |
Power supply | DC 12V, 1000mA max. PoE IEEE802.3af |
Temp. operation | -10º C ~ +55º C |
Dimensions | 260 (H) x 170 (W) x 28 (D) mm |
Weight | 1000 g |
Contents
XS-V2202E-IP
Video intercom system 2 wires or IP
- Video intercom system 2 wires or IP
- Camera 2Mpx
- IR night vision
- Bidirectional audio
- Can be powered by PoE
- Stainless steel, vandal proof
Description
- X-Security
- IP and 2-wire video intercom with 2Mpx camera
- Adjustable wide angle lens
- Integrated speaker and microphone
- IR night vision
- TCP/IP Connection
- Compatible with VTNS1006A-2
- Remote monitoring via Smart PSS software, Mobile App or interior monitor
- Remote door opening
- Flush mounted
- LED status indicator
- Can be powered by PoE
- Vandal-proof stainless steel finish
Specifications
Brand | X-Security |
Image sensor | 2.0 Megapixel CMOS |
Lens | 1.95mm |
Viewing angle | H:160º |
Audio | Two-way audio with microphone and speaker and status LED |
Keyboard | Mechanical call button |
Outputs | 1 for the mail lock. Second door opening with the RS485 accessory . Power supply output |
Inputs | Exit button, feedback, sensor |
Remote access | Web browser, Mobile App or SmartPSS software |
Communication | 2-hilos or TCP/IP Technology |
Network interface | Available with VTNS1006A-2 accessory |
Power supply | DC 12 V / 1000 mA max. / Standard PoE |
Degree of protection | IP55, IK07 |
Material | Stainless steel |
Temp. operation | -30º C ~ +60º C |
Dimensions | 130 (H) x 96 (W) x 28.5 (D) mm |
Weight | 350 g |
Contents
XS-AC1222-MFPF
Time & Attendance Control
- Time & Attendance Control
- Fingerprints, Mifare cards and keypad
- 2.000 recordings / 100.000 records
- TCP/IP and USB
- Voice Indications
- Compatible with SmartPSS software
Description
- X-Security
- Standalone biometric reader for time attendance
- Identification by fingerprint, Mifare cards, password and/or combinations
- Keyboard and color LCD screen
- Fingerprints capacity 2.000 , 1.000 users and 100.000 records
- USB and TCP/IP flash connection
- Control of schedules, shifts and cycles
- Complete SmartPSS management software included
Specifications
Brand | X-Security |
Hardware CPU | 32 Bit Processor + 16MB RAM |
Sensor | Optical Sensor |
Read time | < 1.5 Sec. |
Capacity | Up to 2.000 fingerprints / 1.000 Mifare cards |
Records | 100.000 registers |
Identification modes | Fingerprint, Card, Pin and combinations |
Proximity card | Mifare 13.56MHz |
Screen | LCD |
Communication | TCP/IP, USB |
Software | SmartPSS |
Power supply | With rechargeable battery from 2600mAh |
Dimensions | 135.6(An) x 181.6 (h) x 31(Fo) mm |
Weight | 370 g |
Contents
XS-AC1222-EMPF
Fingerprints, EM Card and Keyboard
- Time & Attendance Control
- Fingerprints, EM Card and Keyboard
- 2.000 recordings / 100.000 records
- TCP/IP and USB
- Voice Indications
- Compatible with SmartPSS software
Description
- X-Security
- Standalone biometric reader for time attendance
- Identification by fingerprint, EM cards, password and/or combinations
- Keyboard and color LCD screen
- Fingerprints capacity 2.000 , 1.000 users and 100.000 records
- USB and TCP/IP flash connection
- Control of schedules, shifts and cycles
- Complete SmartPSS management software included
Specifications
Brand | X-Security |
Hardware CPU | 32 Bit Processor + 16MB RAM |
Sensor | Optical Sensor |
Read time | < 1.5 Sec. |
Capacity | Up to 2.000 fingerprints / 1.000 RFID Cards |
Records | 100.000 registers |
Identification modes | Fingerprint, Card, Pin and combinations |
Proximity card | RFID EM 125 KHz |
Screen | LCD |
Communication | TCP/IP, USB |
Software | SmartPSS |
Power supply | With rechargeable battery from 2600mAh |
Dimensions | 135.6(An) x 181.6 (h) x 31(Fo) mm |
Weight | 370 g |
Contents
A300-WIFI
ANVIZ Time & Attendance Terminal
- ANVIZ Time & Attendance Terminal
- Fingerprints, RFID cards and keyboard
- 2000 recordings / 50.000 records
- TCP/IP, USB, WiFi, relay for siren
- 8 Time & Attendance control modes
- Free CrossChex Software
Description
- Anviz
- Standalone bio-metric reader for Time and Attendance
- Identification by RF EM card, fingerprint, passcode and/or combinations
- Keyboard and LCD graphic display
- Capacity 2.000 fingerprints/cards & 50.000 registers
- 8 control modes of customisable time & attendance
- Control of schedules, shifts and cycles
- Voice indications for all operations
- WiFi communication, TCP/IP, USB Flash
- Relay for siren control
- Glossy design
- ANVIZ CrossChex complete management software included
Specifications
Brand | ANVIZ |
Processor | TI Stellaris® 32-Bit high speed |
Algorithm | BioNano V10 |
Optical fingerprint sensor | AFOS300 encapsulated |
Scan area | 22 x 18 mm |
Resolution | 500 DPI |
Identification time | < 0.5 Sec. |
Screen | 128x64 LCD Blue |
Capacity | Up to 2000 fingerprints or cards |
Records | Up to 50000 |
Identification modes | F, C, U+F, U+P, P+C, F+C |
Proximity card | EM RFID (125KHz) |
PC communication | TCP/IP, USB, WiFi |
Inputs | No |
Outputs | Scheduled sirens |
Free software | ANVIZ AIM CrossChex |
Power supply | DC 5 V / 1.0 A (included) |
Temp. operation | -10º C ~ +40º C |
Dimensions | 38 (D) x 200 (W) x 140 (H) mm |
Weight | 240 g |
Certificates | CE / FCC / RoHS |
Contents
A380
ANVIZ Time & Attendance Terminal
- ANVIZ Time & Attendance Terminal
- Fingerprints, RFID cards and keyboard
- 10.000 recordings / 200.000 records
- WiFi, TCP/IP, USB, RS232, relay for siren
- 8 Time & Attendance control modes
- Free CrossChex Software
Description
- Anviz
- Standalone bio-metric reader for Time and Attendance
- Identification by RF EM card, fingerprint, passcode and/or combinations
- 3.2" TFT Screen & keypad
- High Capacity 10.000 fingerprints / cards and 200.000 registries
- 8 control modes of customisable time & attendance
- Control of schedules, shifts and cycles
- Voice indications for all operations
- Communication, WiFi, TCP / IP, USB Flash, RS232
- Glossy design
- ANVIZ CrossChex complete management software included
Specifications
Brand | ANVIZ |
Algorithm | BioNano V10 |
Fingerprint sensor | AFOS optical sensor |
Scan area | 22 x 18 mm |
Resolution | 500 DPI |
Identification time | < 0.5 Sec. |
Screen | 3,2" TFT |
Capacity | Up to 10.000 fingerprints or cards |
Records | Up to 200.000 |
Records | Up to 200.000 |
Time & Attendance Modes | Up to 8 customizable modes |
Proximity card | EM RFID (125KHz) |
PC communication | TCP/IP, miniUSB, USB Flash, RS232, WiFi |
Inputs | No |
Outputs | No |
Free software | ANVIZ CrossChex and ANVIZ CrossChex Cloud |
Power supply | DC 5 V / 1.0 A (included) |
Temp. operation | -30º C ~ +60º C |
Dimensions | 38 (D) x 204 (W) x 139 (H) mm |
Weight | 240 g |
Certificates | CE / FCC / RoHS |
Contents
M7
ANVIZ autonomous biometric reader
- ANVIZ autonomous biometric reader
- Fingerprints, EM , Mifare and keyboard
- 3000 recordings / 50000 records
- TCP/IP, RS485, Wiegand 26
- Integrated controller | Time & Attendance
- Suitable for outdoor use, anti-vandal protection.
DESCRIPTION
- Anviz
- Independent biometric reader
- Access by EM RFID card and Mifare, fingerprint, user, password and / or combinations
- Touch keypad and OLED display
- Capacity for 3000 fingerprints, 50000 registers
- Communication TCP/IP, RS485 and Wiegand 26
- Integrated controller (door sensor, button and relay)
- Groups and Anti Pass-back
- Allows up to 8 time & attendance modes
- Supports PoE power supply for device and lock
- Suitable for exterior IP65, anti-vandal IK10
- Included ANVIZ CrossChex management software
Specifications
Brand | Anviz |
Algorithm | BioNano V10 |
Activation sensor | Infrared auto-activation |
Scan area | 22 x 18 mm |
Resolution | 500 DPI |
Identification time | < 0.5 Sec. |
Screen | 128x64 OLED |
Capacity | Up to 3000 fingerprints or cards |
Records | Up to 50000 |
Time & Attendance Modes | Up to 8 |
Identification modes | F, C, U+F, U+P, P+C, F+C |
Proximity card | EM RFID (125KHz) and Mifare (13.56MHz) |
PC communication | TCP/IP, RS485 |
Inputs | Door sensor, opening button |
Outputs | Wiegand 26, Output relay NO/NC |
Protection | Suitable for outdoor IP65, IK10 anti-vandal |
Power supply | DC 12 V / 1000 mA, PoE IEEE802.3af |
Dimensions | 41 (D) x 54 (W) x 170 (H) mm |
Weight | 200 g |
Contents
D200
ANVIZ Time & Attendance Terminal
- ANVIZ Time & Attendance Terminal
- Fingerprints and keyboard
- 2000 recordings / 50000 records
- USB and TCP/IP communication
- 8 Time & Attendance control modes
- Free CrossChex Software
Description
- Anviz
- Desktop Time & Attendance Terminal
- Fingerprint and password identification
- LEDs, keyboard and large LCD graphic screen
- Capacity 2000 fingerprints and 50.000 records
- Customisable time & attendance control modes
- Voice indications for all operations
- TCP/IP, USB Flash Communication
- Control of schedules, shifts and cycles
- Power supply 5V 1.1A
- Rechargeable Internal Lithium Battery
- ANVIZ CrossChex Software (recommended)
- Indoor installation
Specifications
Brand | ANVIZ |
Operating system | Linux |
Processor | 32-bit ARM MCU |
Algorithm | BioNano V10 |
Optical fingerprint sensor | AFOS300 encapsulated |
Activation sensor | Infrared auto-activation |
Scan area | 22 x 18 mm |
Resolution | 500 DPI |
Screen | 128*64 Blue LCD |
Identification time | < 0.5 Sec. |
Capacity | Up to 2000 fingerprints |
Records | Up to 50000 |
Identification modes | Fingerprint(F), Pin(P), P+F, ID+P |
PC communication | USB, TCP/IP |
Free software | ANVIZ CrossChex |
Power supply | DC 5 / 1.0 A |
Battery capacity | 1100 mAh / up to 6 hours |
Temp. operation | -10º C ~ +40º C |
Dimensions | 30 (D) x 157 (W) x 119 (H) mm |
Weight | 350 g |
Certificates | CE / FCC |
Contents
2OA1000-MERCURY
Fingerprint, RFID, keypad & 1,3Mpx Camera
- Time & Attendance and Access control
- Fingerprint, RFID, keypad & 1,3Mpx Camera
- 1.000 recordings / 200.000 records
- WiFi, TCP/IP, USB, RS232, Relay
- 8 Time & Attendance control modes
- CrossChex software
Description
- Anviz
- Standalone biometric reader for Access Control and Time and Attendance
- RFID card, fingerprint, passcode and/or combinations
- Latest generation sensor by Lumidigm
- Keypad and 3.5” TFT Screen
- Capacity 1.000 fingerprints and/or cards and 200.000 records
- 8 control modes of customisable time & attendance
- Voice indications for all operations
- 2 integrated controllers (door sensor, relay's & doorbell push button)
- Relay for siren control
- Communication: TCP/IP, USB Flash, RS232 & RS485
- Wiegand input and output 26
- Control of schedules, shifts and cycles
- Personalised messages
- Integrated 1.3 Mega-pixel camera for user photos
- ANVIZ CrossChex complete management software included
Specifications
Brand | ANVIZ |
Processor | Dual-Core Processor of 1GHz |
Memory | 8G Flash Memory & 1G SDRAM |
Operating system | Linux |
Screen | 3,5 " TFT |
Identification time | < 0.5 Sec. |
Capacity | Up to 1.000 fingerprints and/or RFID cards |
Records | Up to 200.000 |
Identification modes | Fingerprint(F), Card(C), Pin(P), NFC, P+F, ID+P, P+C, F+C |
Proximity card | EM RFID (125KHz) |
PC communication | WIFI, TCP/IP, RJ45, RS232, RS485 & USB Flash drive |
Inputs | Door sensor, Wiegand Input 26 |
Outputs | Double Wiegand 26 / Anviz, Double relay |
Free software | ANVIZ CrossChex |
Power supply | DC 5-12V / 1.0 A |
Temp. operation | -20º C ~ +60º C |
Dimensions | 50 (D) x 180 (W) x 137 (H) mm |
Weight | 650 g |
Certificates | CE / FCC / RoHS |
Contents
XS-AC1212-EMPF
3.000 recordings / 150.000 records
- Access and Attendance control
- Fingerprints, EM RFID card and keyboard
- 3.000 recordings / 150.000 records
- TCP/IP, USB, RS485, Wiegand & Relay
- Suitable for exterior IP65
- Compatible with SmartPSS software
Description
- X-Security
- Standalone biometric reader for Access Control and Time and Attendance
- Identification by RF EM card, fingerprint, passcode and/or combinations
- Keyboard and LCD graphic display
- Capacity 3.000 fingerprints, 150.000 records
- 128 groups, schedules and holiday calendars
- Communication TCP/IP, RS485, miniUSB and Wiegand 26
- Integrated controller (door sensor, push button, bell and relay)
- Alarm input and output
- Control of schedules, shifts and cycles
- Anti-Passback and Lock Function
- Suitable for exterior IP65
- Complete SmartPSS management software included
Specifications
Brand | X-Security |
Hardware CPU | 32 Bit Processor + 32MB RAM |
Sensor | Optical Sensor |
Activation sensor | Infrared auto-activation |
Read time | < 1.5 Sec. |
Capacity | Up to 3.000 fingerprints / 30.000 RFID Cards |
Records | 150.000 registers |
Identification modes | Fingerprint, Card, Pin and combinations |
Proximity card | EM RFID (125KHz) |
Screen | 128 x 64 LED |
Communication | TCP/IP, USB |
Outputs | Wiegand OUT, RS485 Relay, Alarm, Doorbell |
Inputs | Door sensor, Open button, Alarm |
Special functions | Anti-passback, multi-card, multi-locks |
Software | SmartPSS |
Power supply | DC 9~15 V / 200 mA max. |
Degree of protection | Weatherproof IP65 |
Temp. operation | -10º C ~ +50º C |
Dimensions | 83(An) x 205 (h) x 33(Fo) mm |
Weight | 440 g |
Contents
XS-3211E-MB4
Video intercom IP
- Video intercom IP
- 2Mpx wide angle camera
- Two-way audio | 4 call buttons
- Mobile App for remote monitoring
- Stainless steel, vandal proof
- Surface mounting
Description
- X-Security
- IP video-intercom with 2Mpx camera
- Adjustable wide angle lens
- Integrated speaker and microphone
- IR night vision
- TCP/IP Connection
- Requires a connection to an internal monitor
- Remote monitoring via Smart PSS software, Mobile App or interior monitor
- Remote door opening
- Surface mounting
- 4 call buttons for an apartment
- Mifare access card reader
- Can be powered by PoE
- Vandal-proof stainless steel finish
- Suitable for outdoors IP65 and anti-vandalism
Specifications
Brand | X-Security |
Operating system | LINUX OS |
Image sensor | 1/2.8" 2 Megapixel CMOS |
Lens | 1.9 mm |
Viewing angle | H: 140º |
Audio | Bidirectional audio with microphone and speaker |
Keyboard | 4 Mechanical call button with customized LED label |
Relay | 1 for the mail lock. Second door opening (with add-on) |
Inputs | Output button and power loop. |
Remote access | Web browser, Mobile App or SmartPSS software |
Network interface | Ethernet 10/100 BaseT |
Power supply | DC 12 V / 600 mA max. / (802.3af) PoE |
Degree of protection | IP65, IK08 |
Material | Aluminium |
Temp. operation | -40º C ~ +60º C |
Dimensions | 182 (H) x 30 (W) x 101 (D) mm |
Weight | 800 g |
Contents

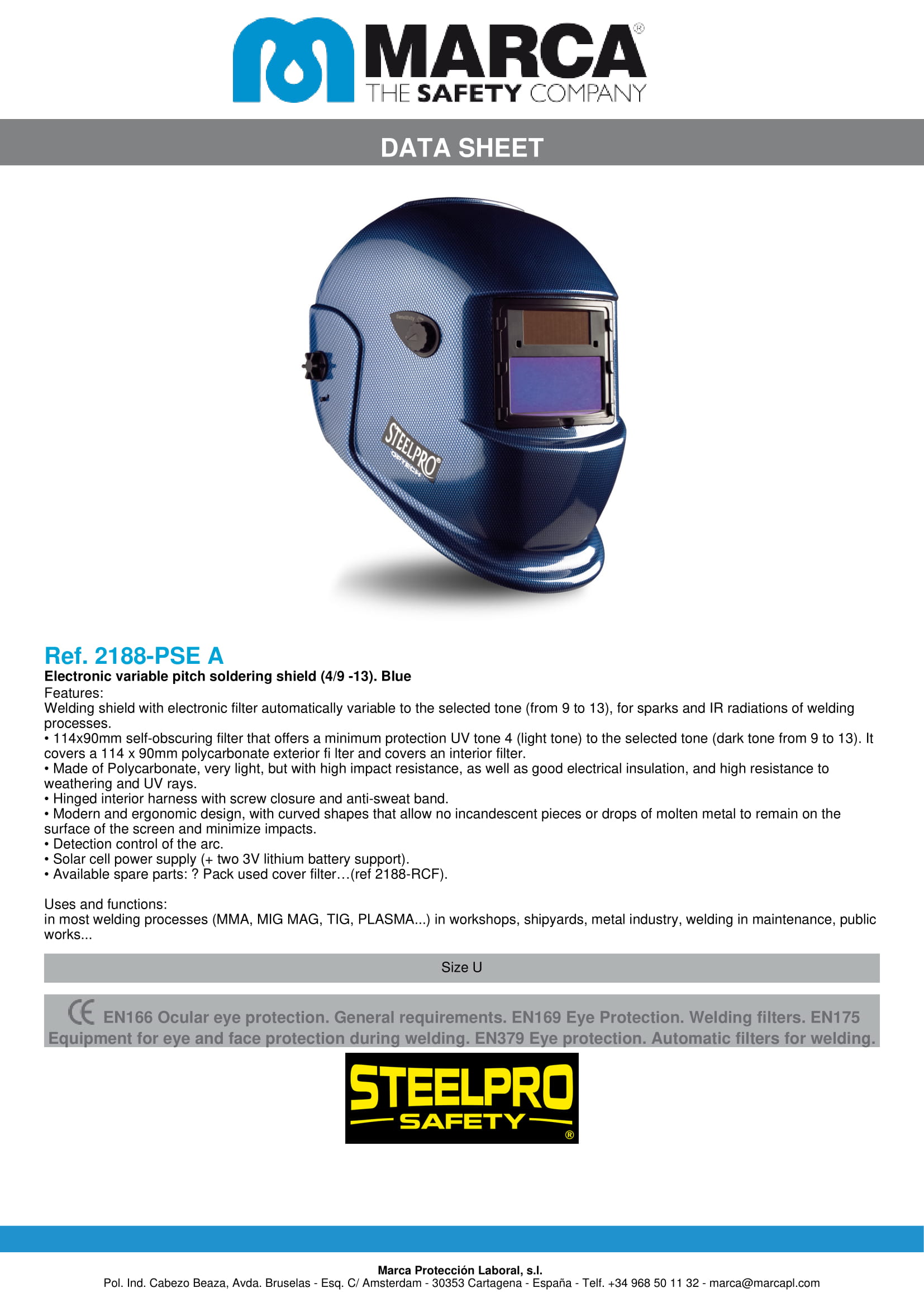

2188-PSE
Electronic variable pitch soldering shield (4/9 -13). Blue

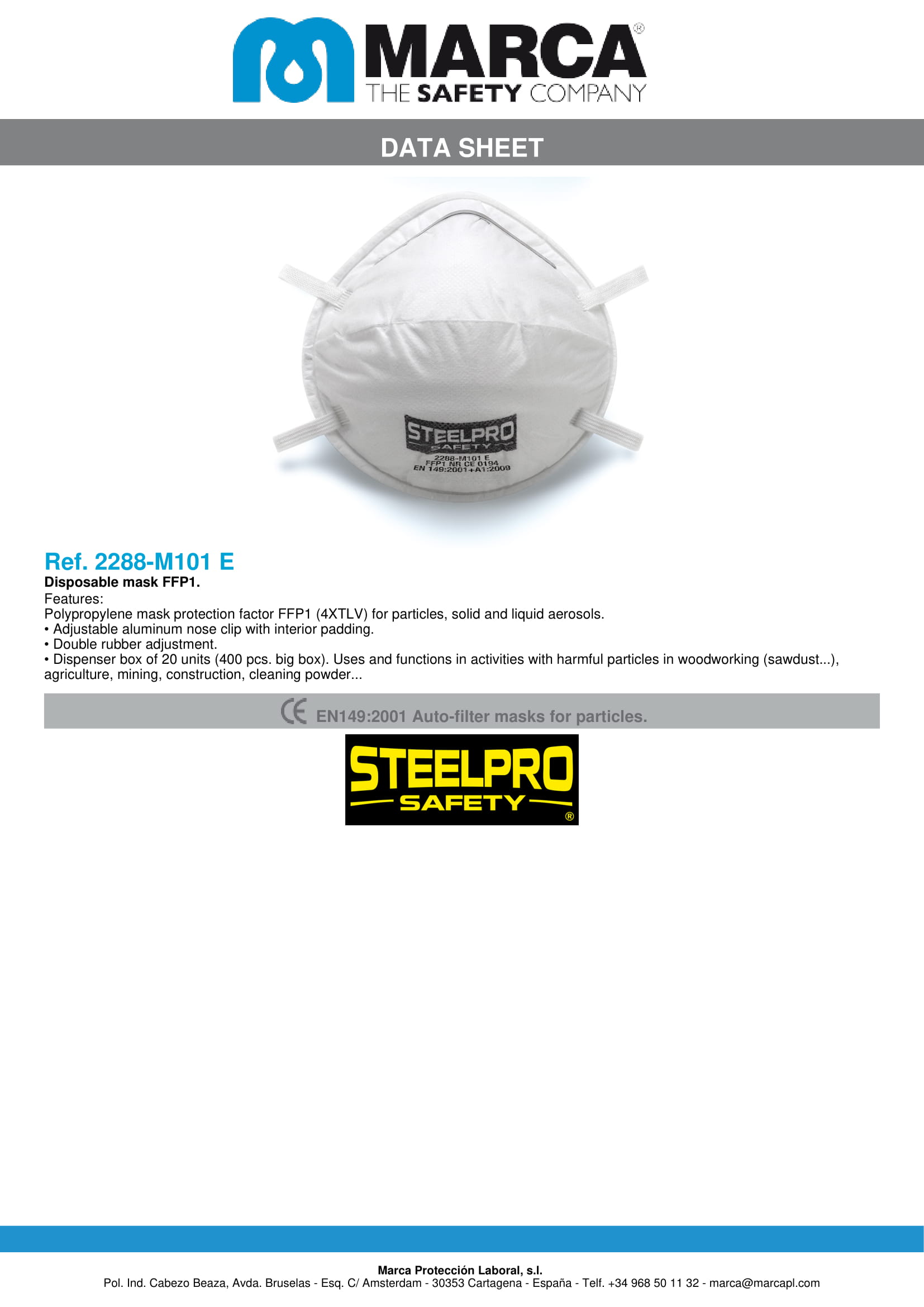

2288-M101 E
Disposable mask FFP1.

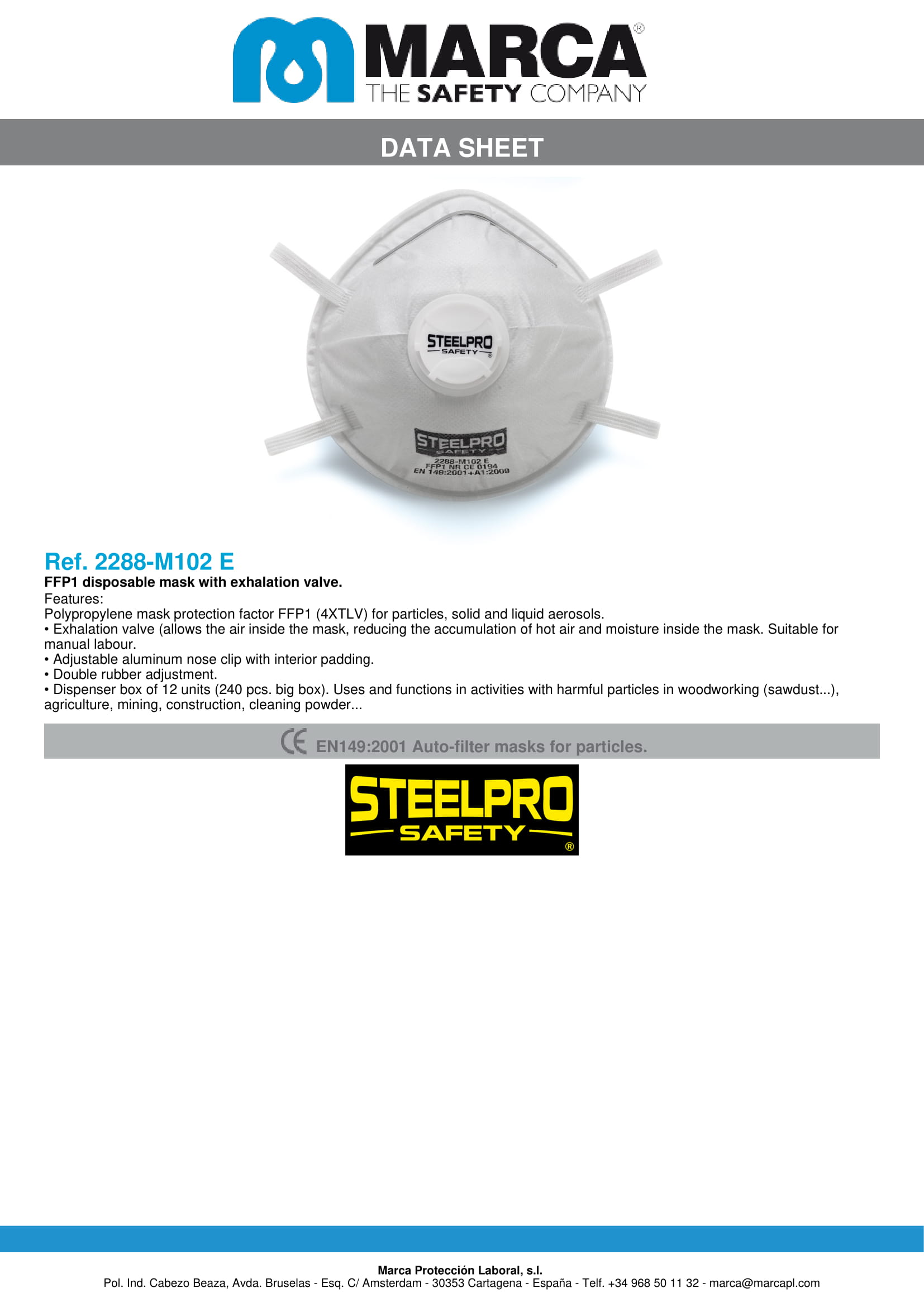

2288-M102 E
FFP1 disposable mask with exhalation valve.

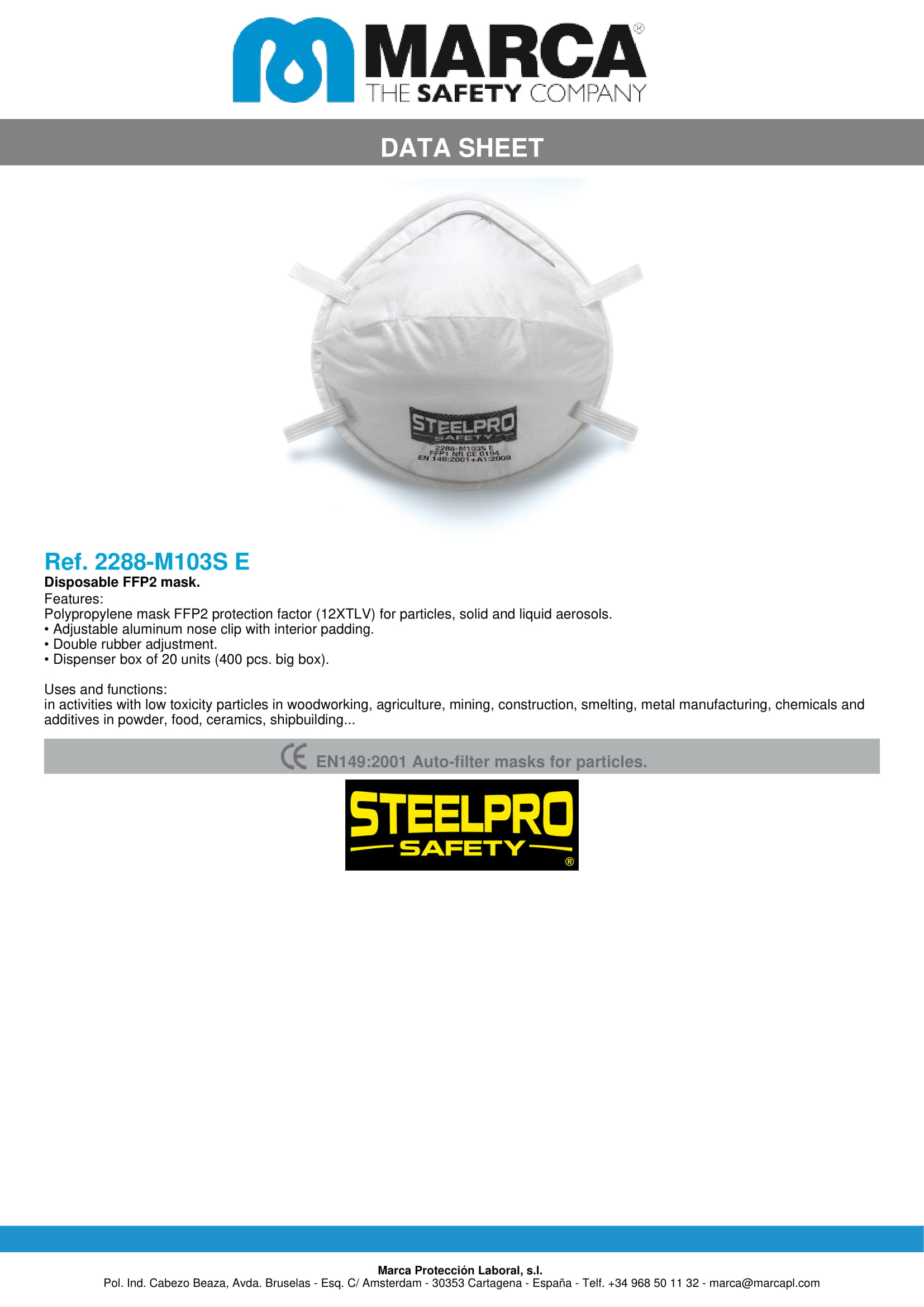

2288-M103S E
Disposable FFP2 mask.

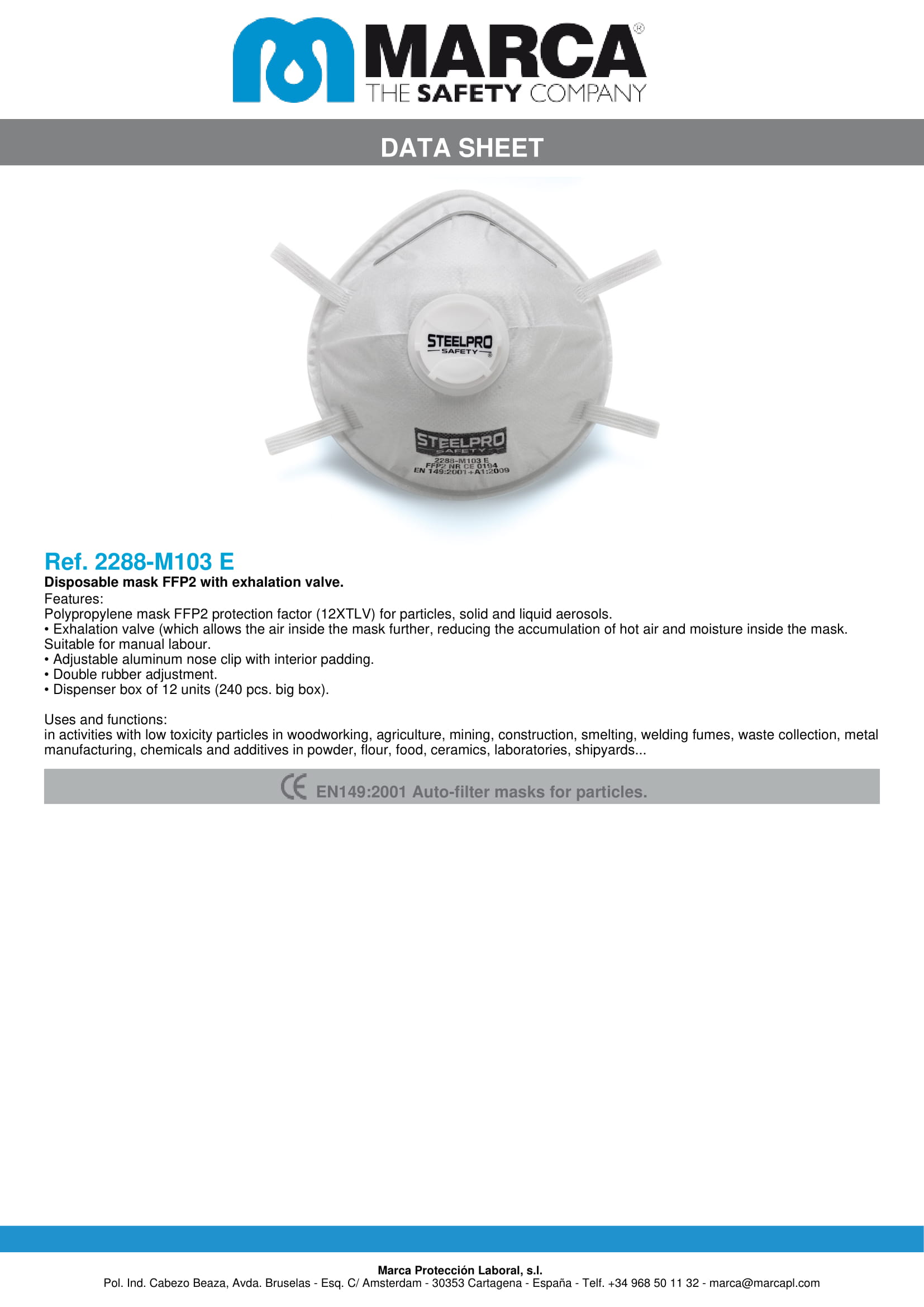

2288-M103 E
Disposable mask FFP2 with exhalation valve.

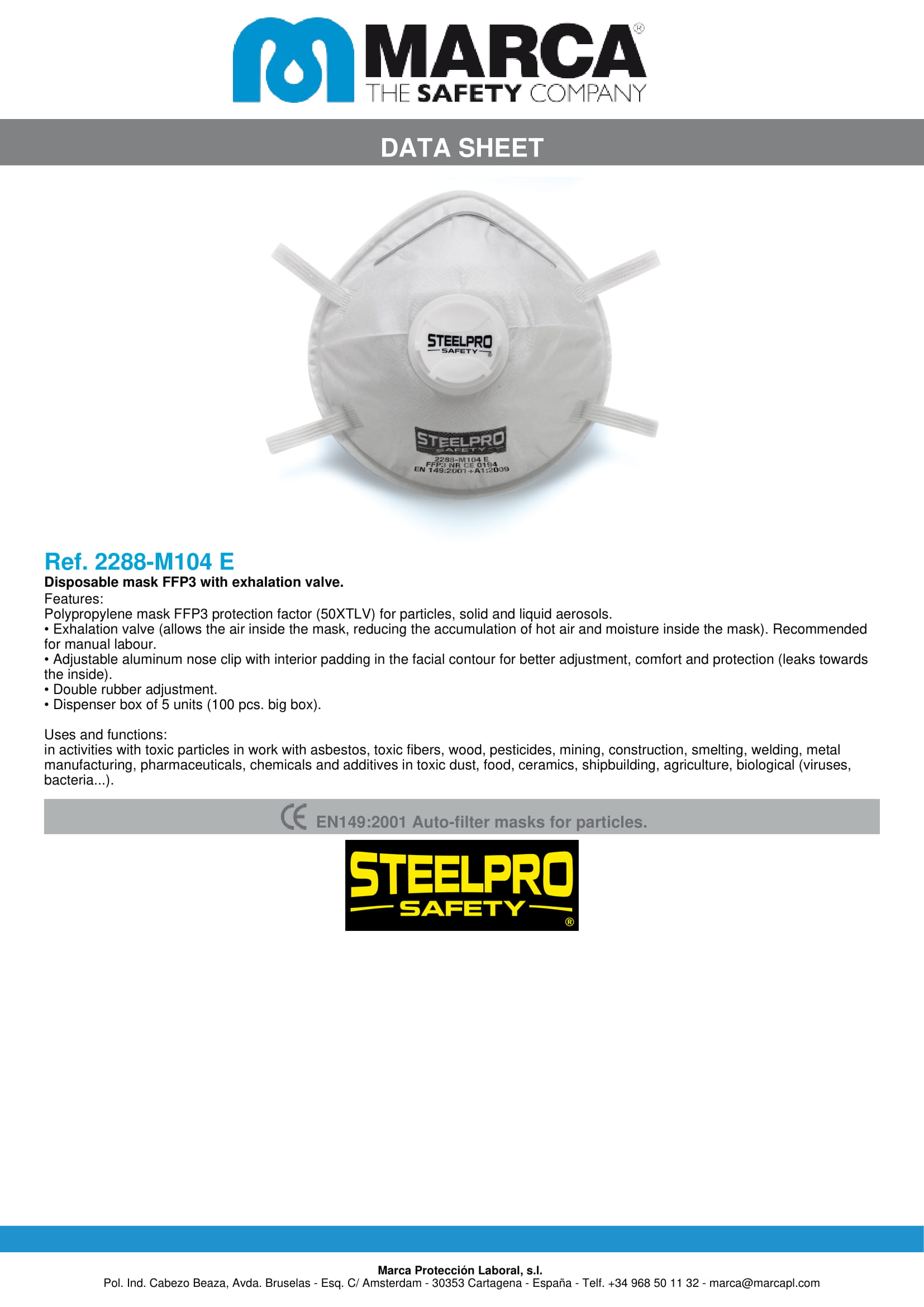

2288-M104 E
Disposable mask FFP3 with exhalation valve.

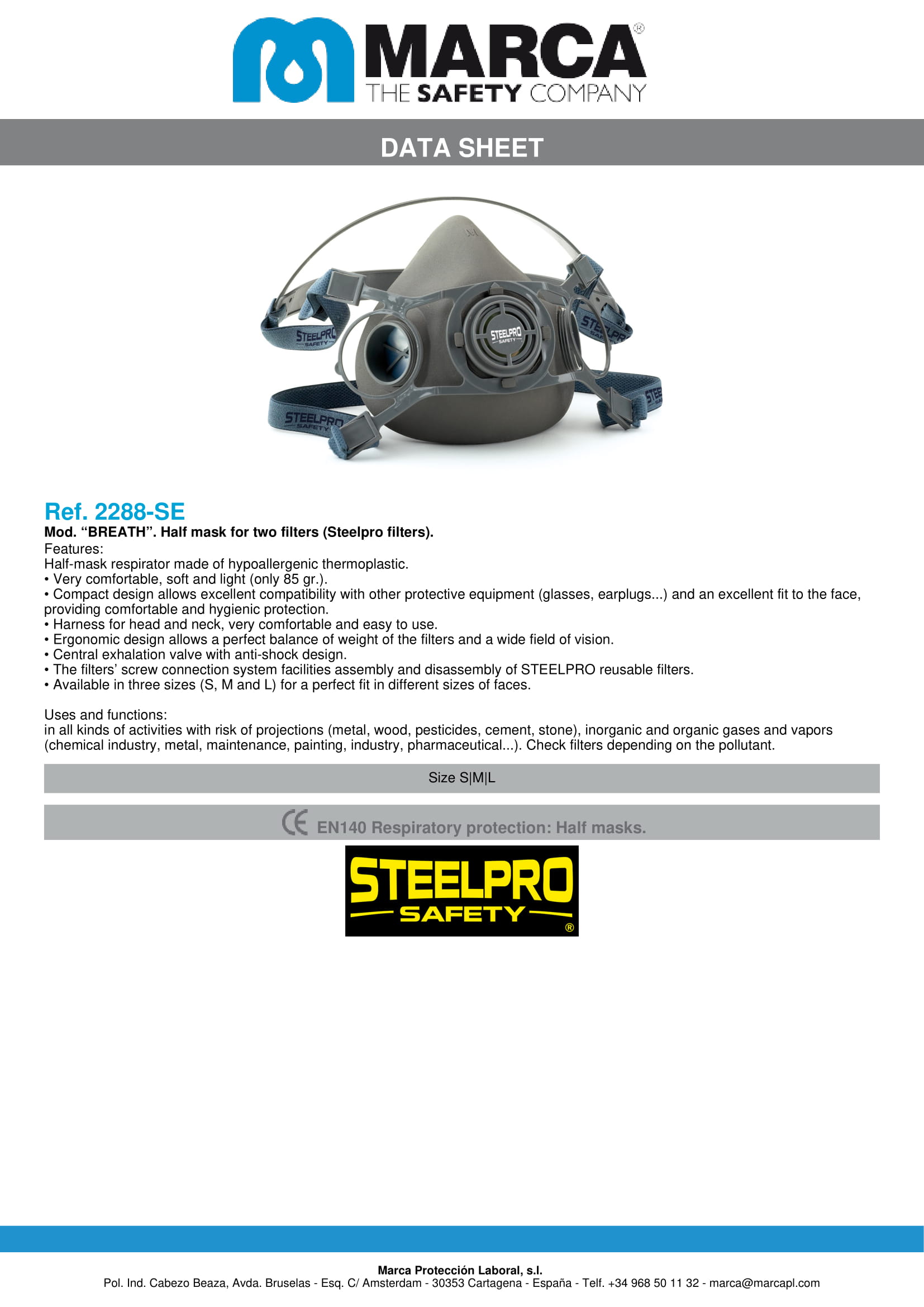

2288-SE
Mod. “BREATH”. Half mask for two filters (Steelpro filters).

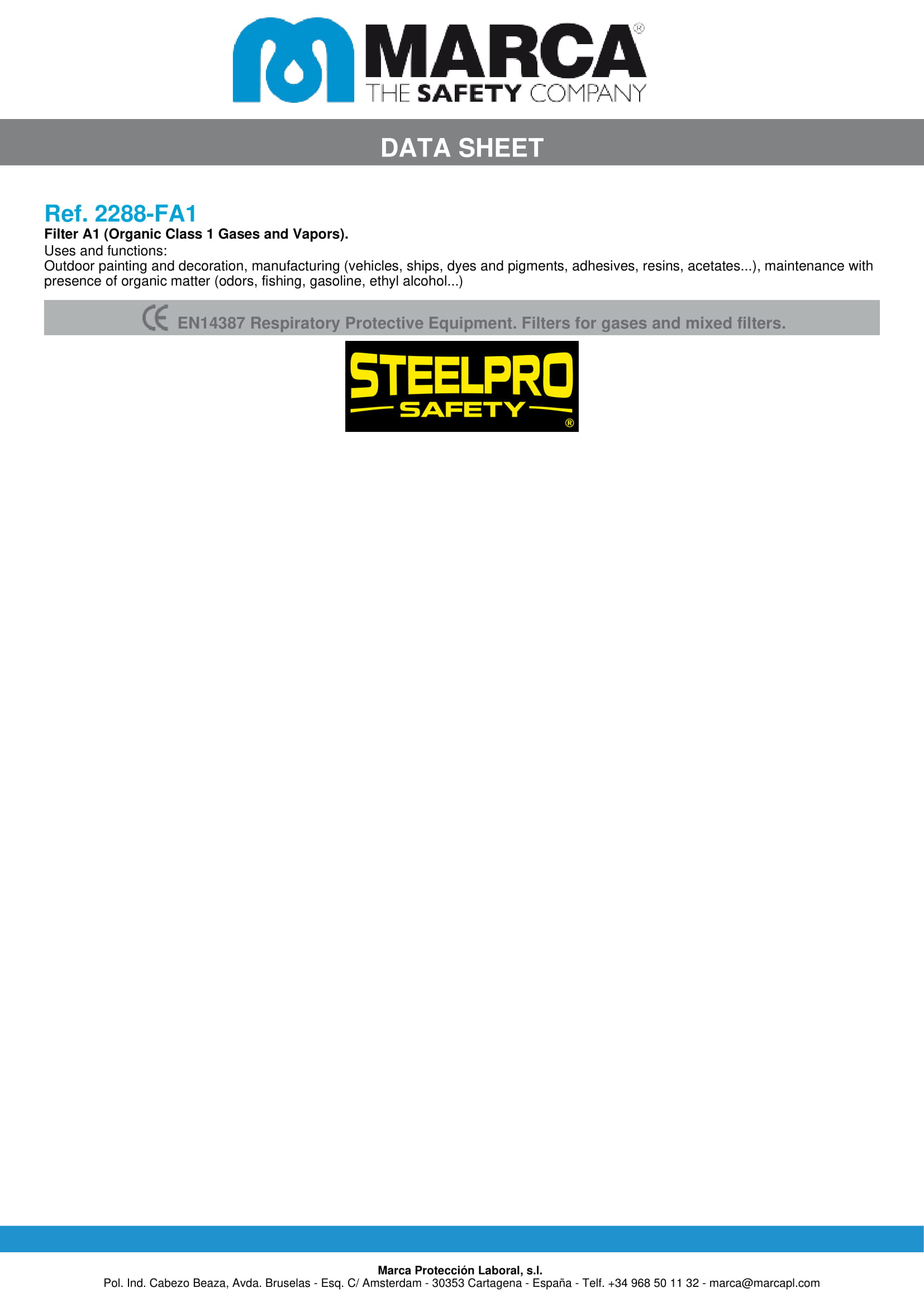

2288-FA1
Filter A1 (Organic Class 1 Gases and Vapors).

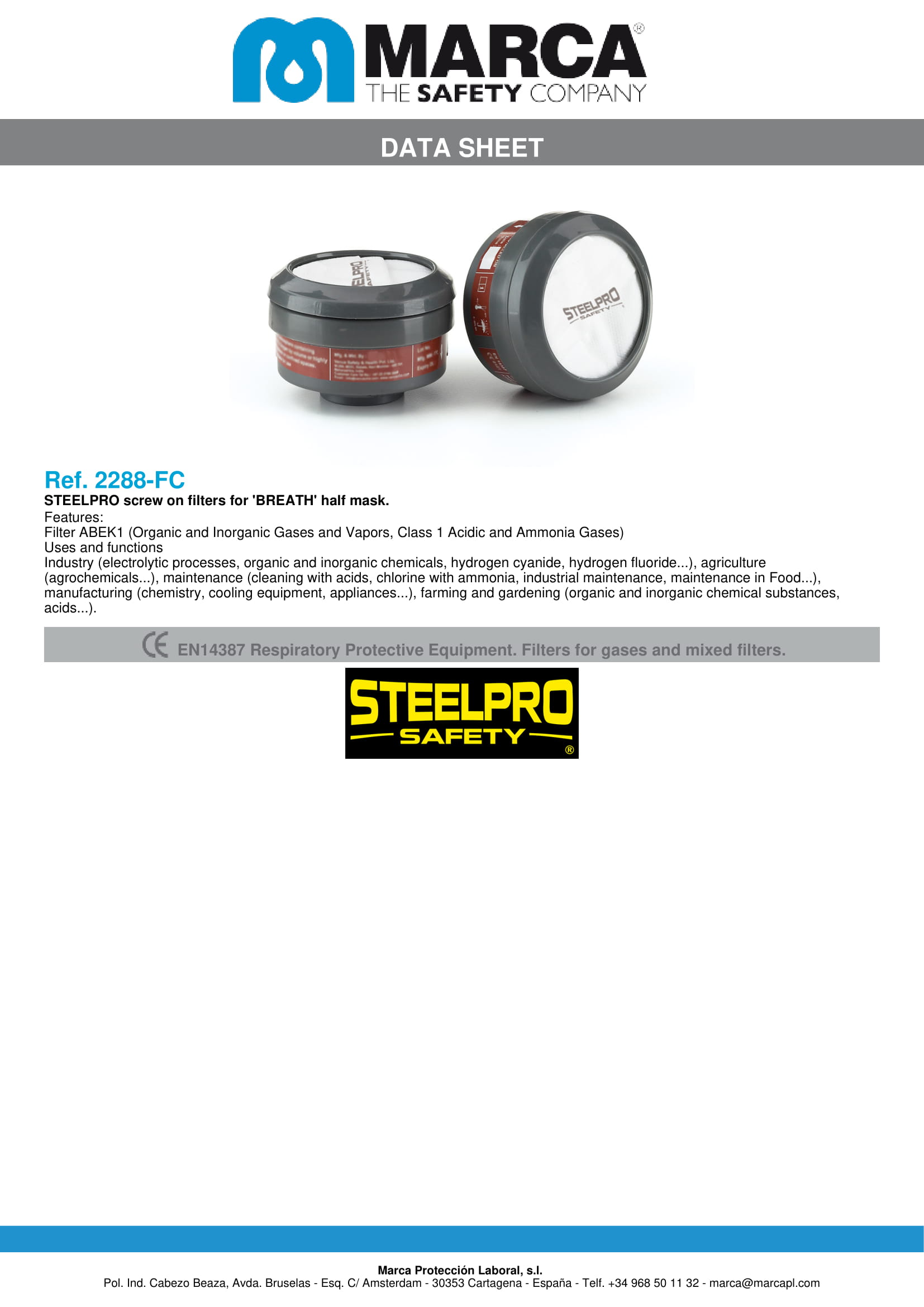

2288-FC
STEELPRO screw on filters for 'BREATH' half mask.

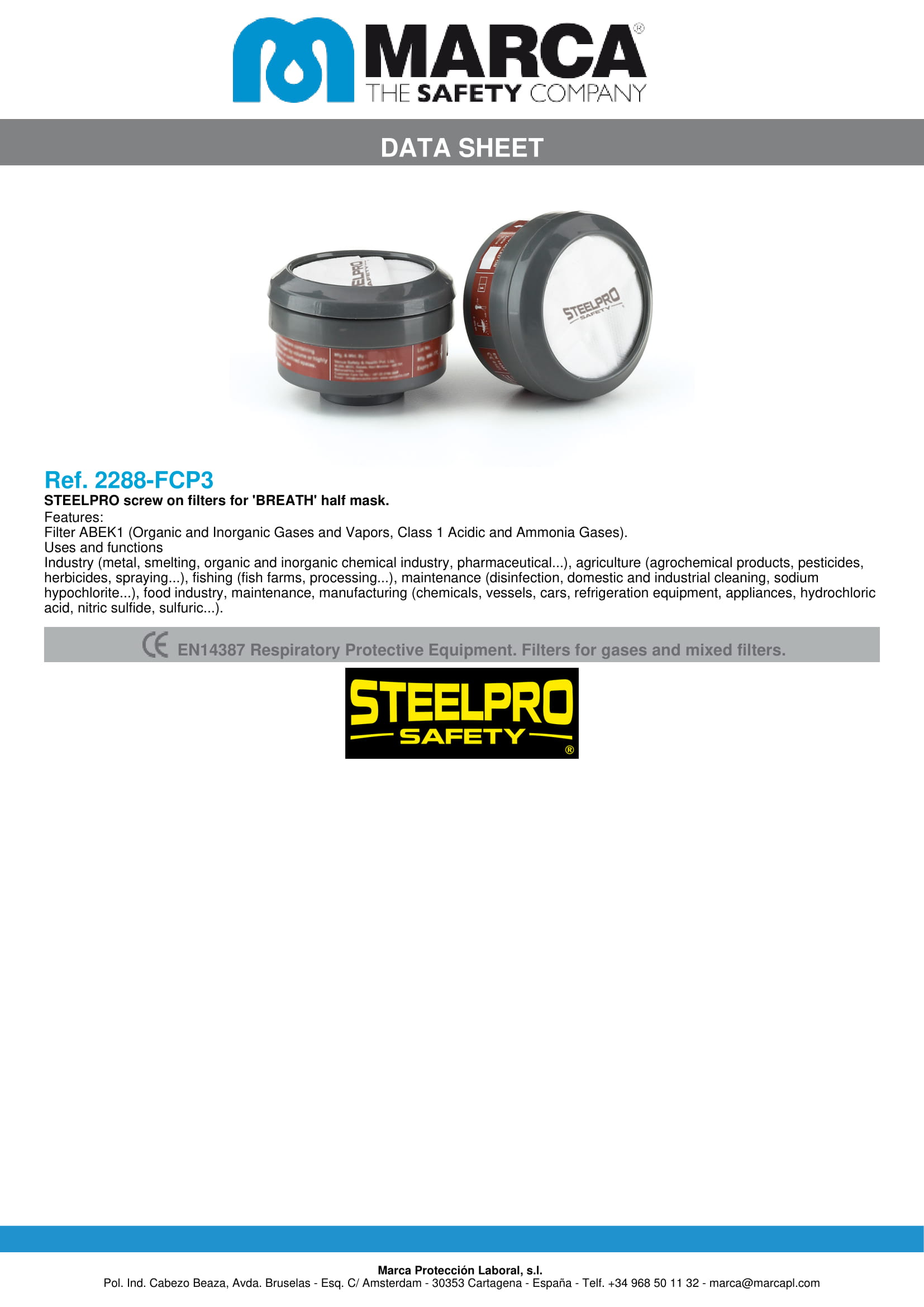

2288-FCP3
STEELPRO screw on filters for 'BREATH' half mask.
UB500
Walk Through Metal Detector

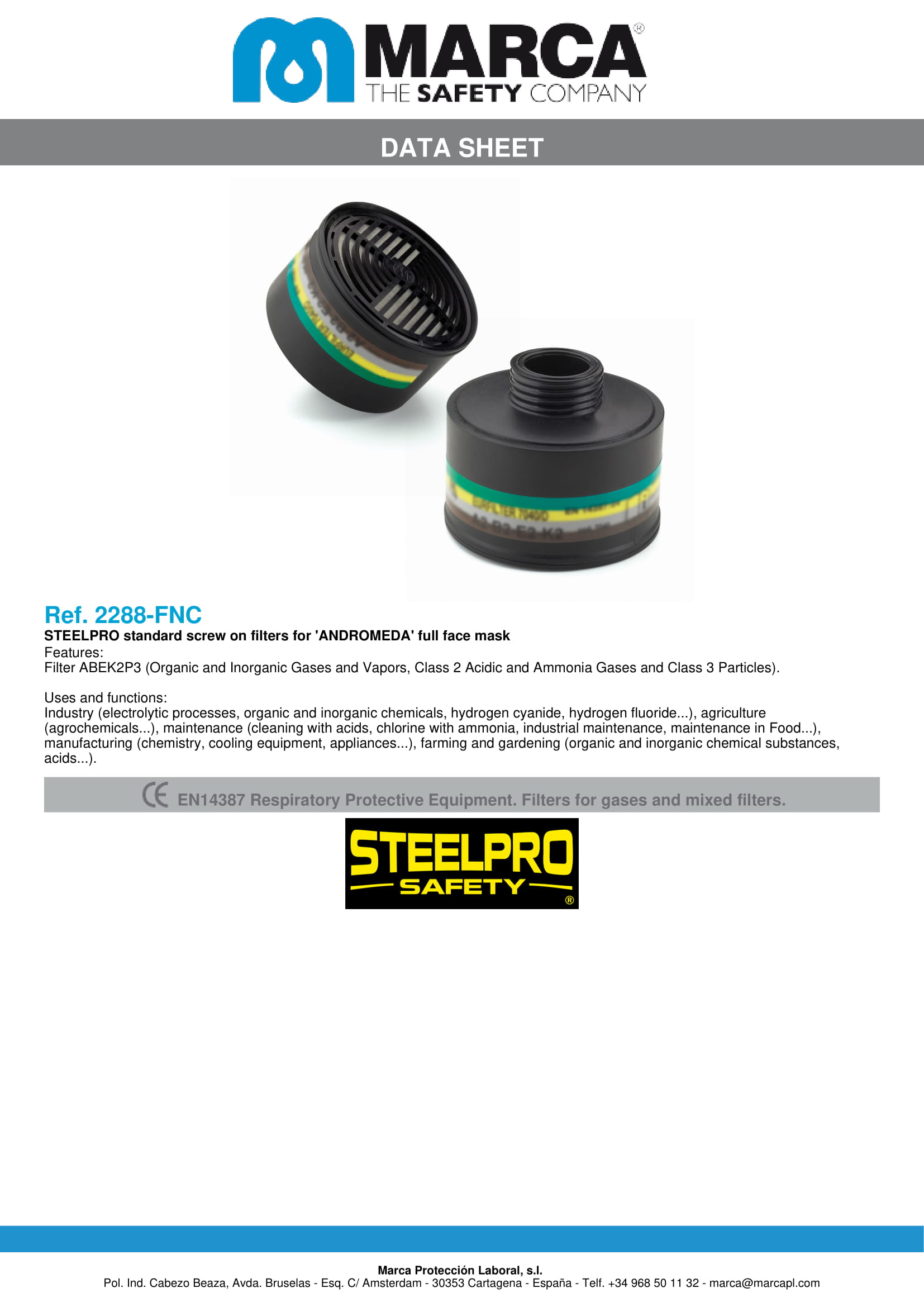

2288-FNC
STEELPRO standard screw on filters for 'ANDROMEDA' full face mask

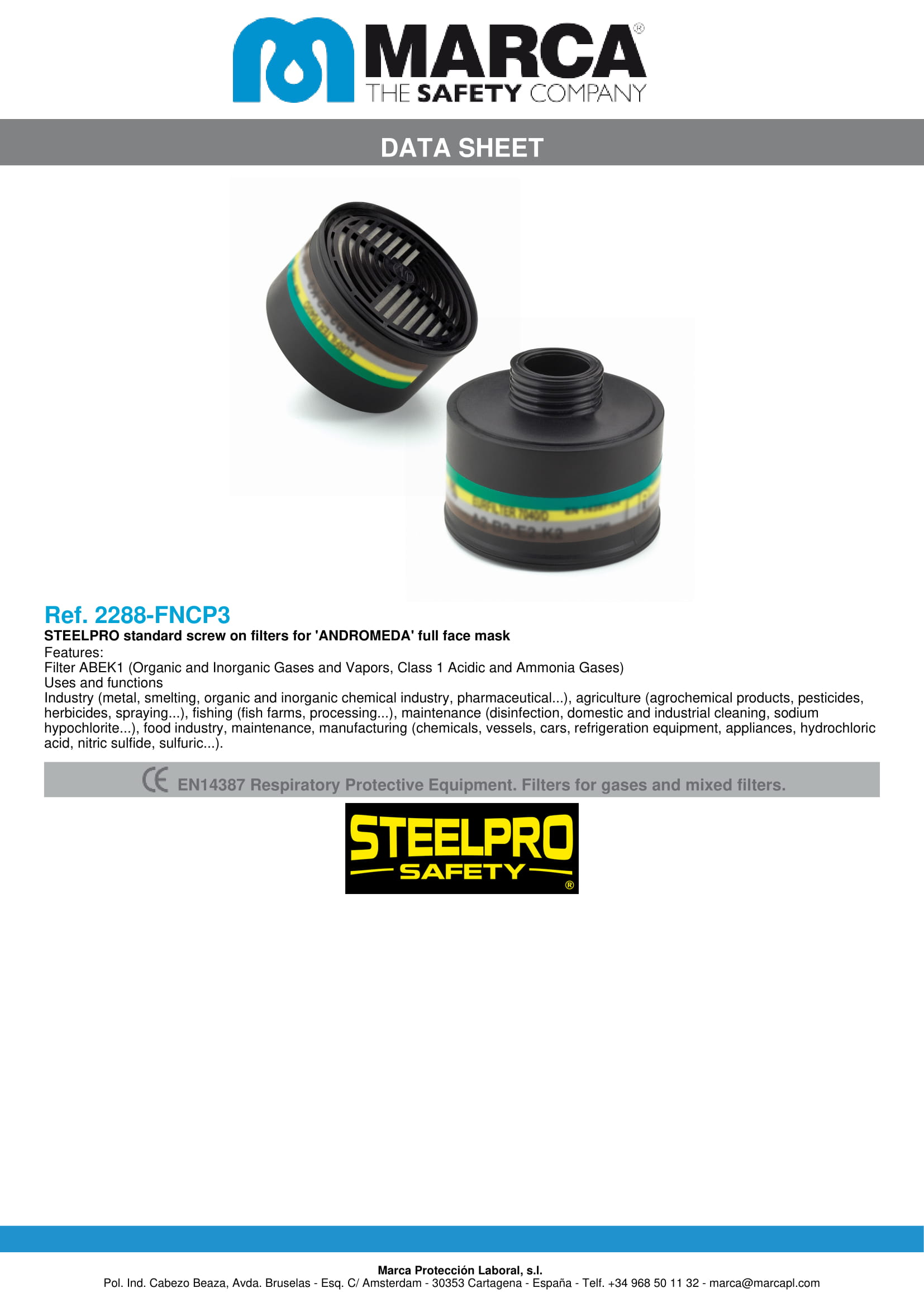

2288-FNCP3
STEELPRO standard screw on filters for 'ANDROMEDA' full face mask
2388-MI1
Fire blanket 150x100 cm.

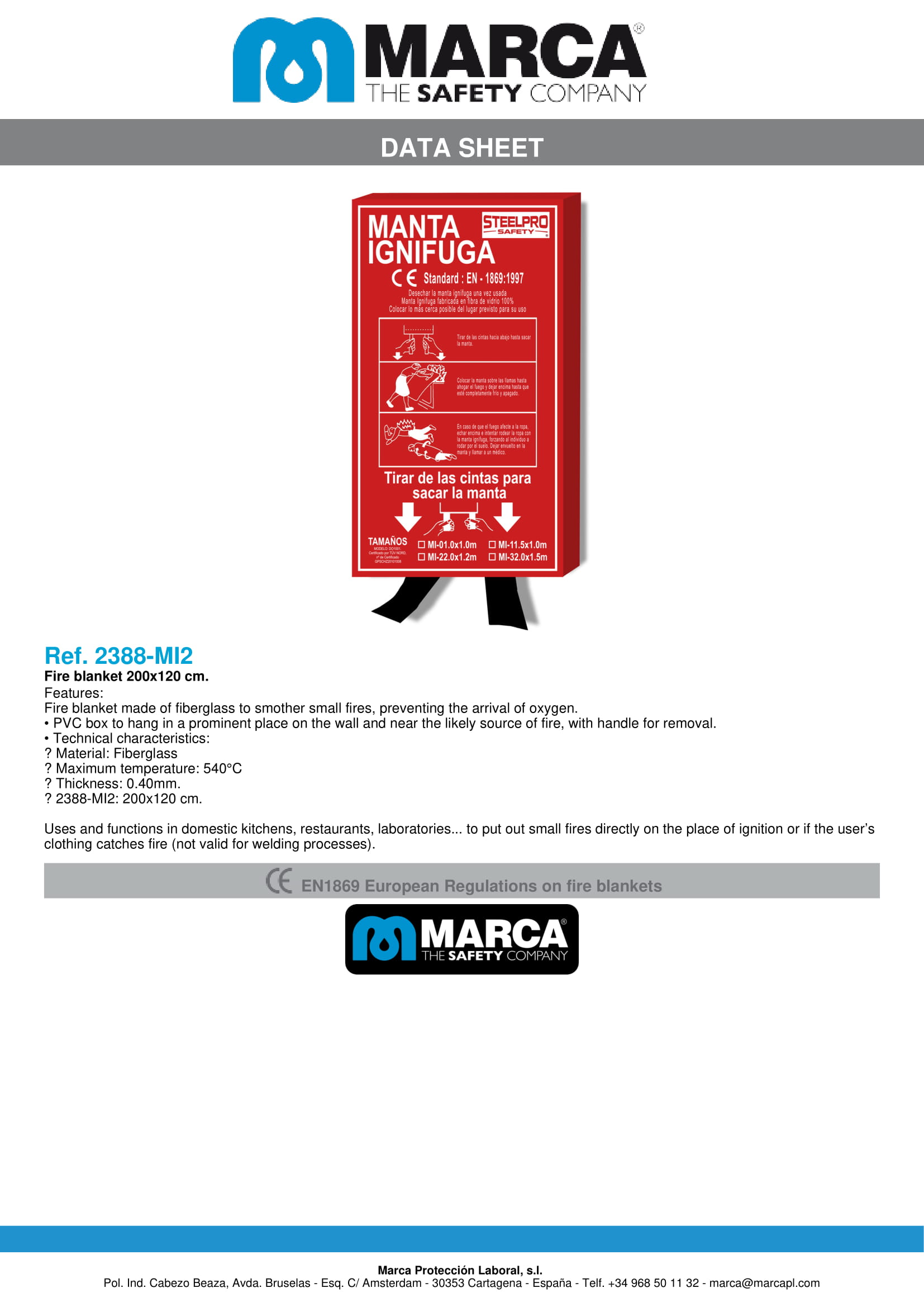

2388-MI2
Fire blanket 200x120 cm.
2388-MI3
Introuvable
2388-MS1
Fire blanket 100x150 cm.

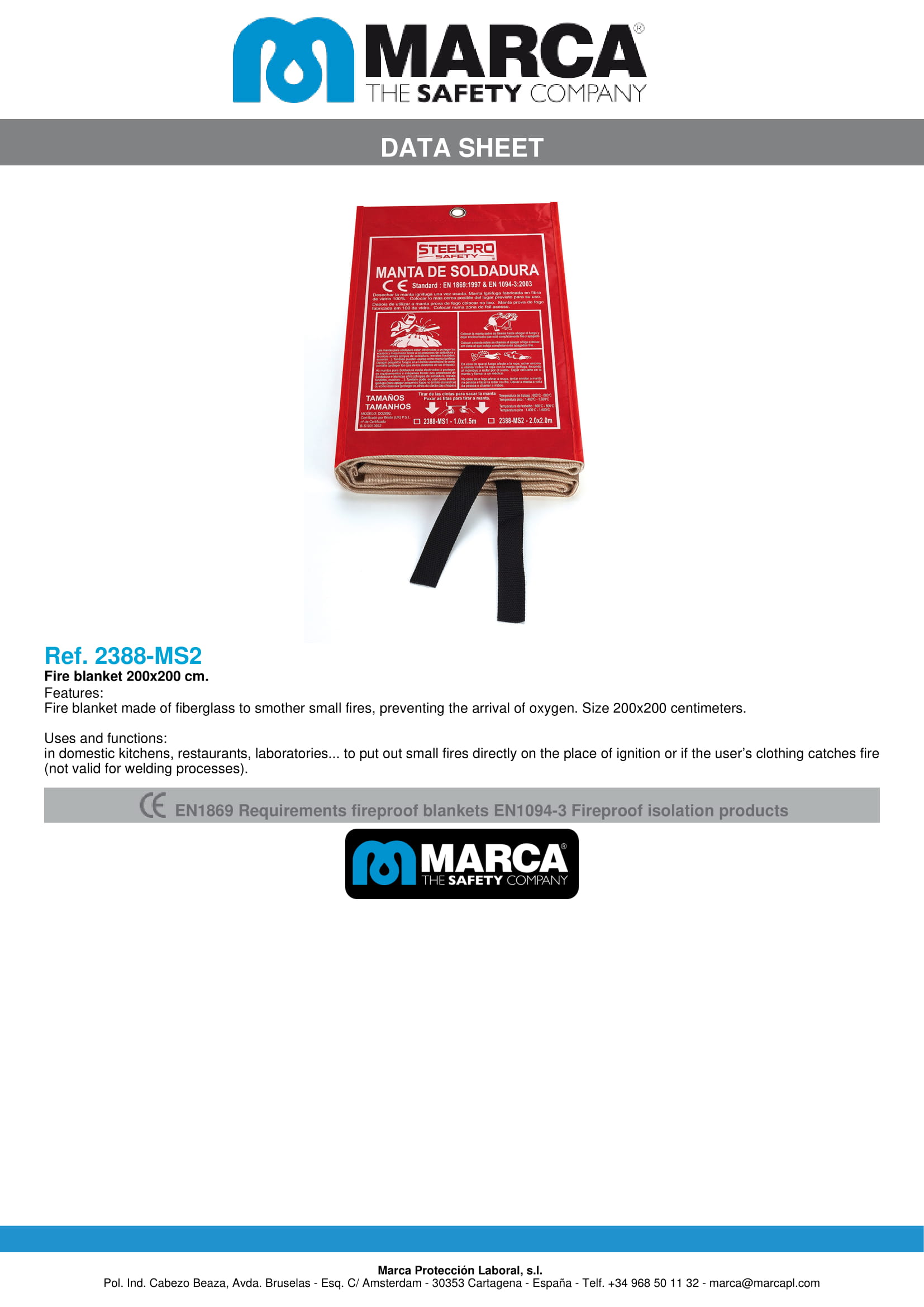

2388-MS2
Fire blanket 200x200 cm.
2388-LPA
Portable eyes washer

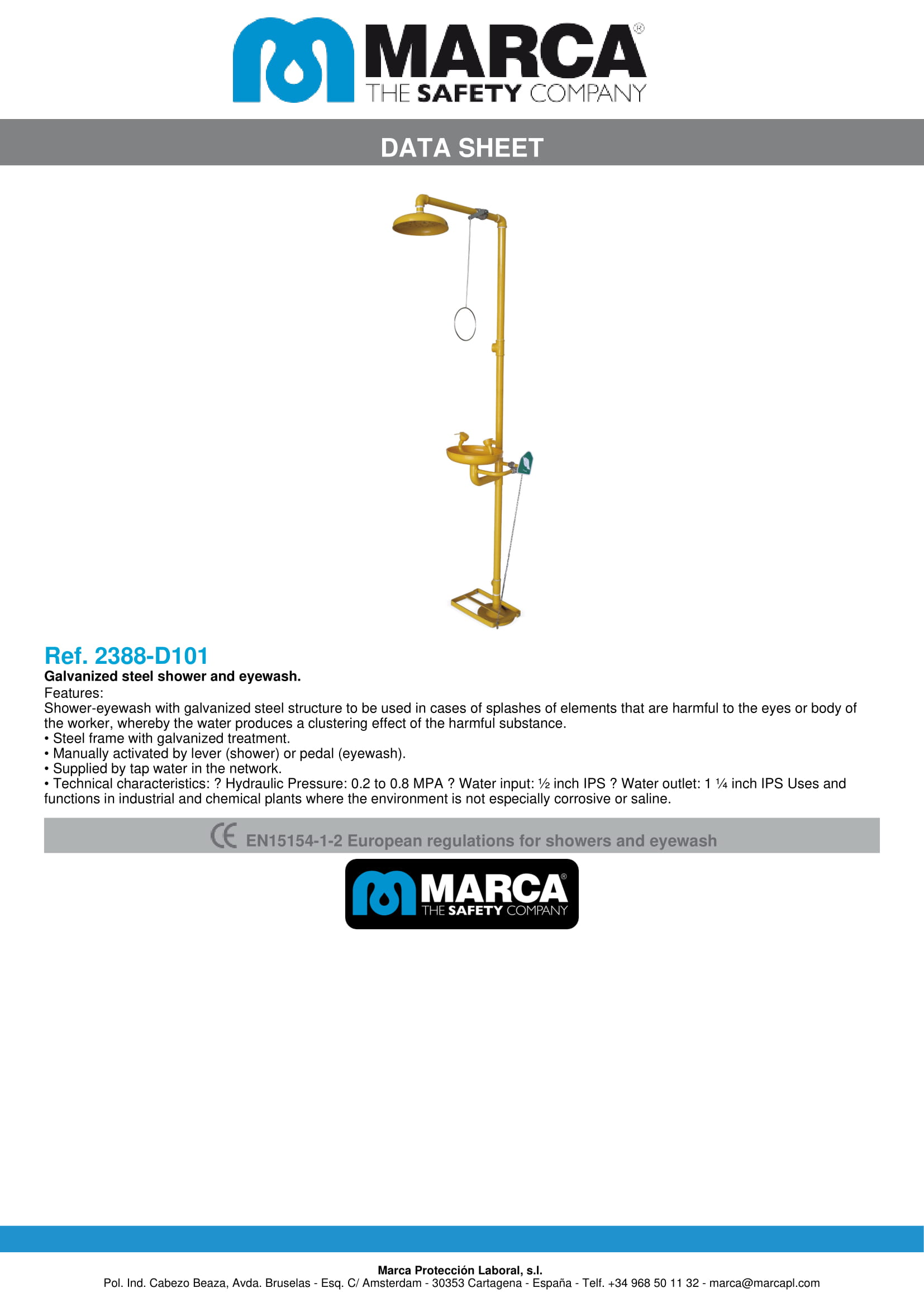

2388-D101
Galvanized steel shower and eyewash.
Slide Gate
Turnstile
Specification |
|||
Dimension:1200*330*980 mm |
|||
Material:304 # stainless steel |
|||
Tickness: Head: 1.5mm , Cabinet:1.2mm |
|||
Lane width:≤1200mm |
|||
speed:35-40 person/min |
|||
Infrared sensor : 4-9 pairs |
Flap Turnstile
Turnstile
Specification |
|||
Dimension:1200*300*980 mm |
|||
Material:304 # stainless steel |
|||
Tickness: Head: 1.5mm , Cabinet:1.2mm |
|||
Channel width:≤600mm |
|||
Infrared sensor : 3 pairs |
|||
speed:35 person/min ,adjustable |
Tripod Turnstile
Turnstile
Specification |
|||
Dimension: 420*330*980mm |
|||
Material:304 # stainless steel |
|||
Tickness: Head: 1.5mm , Cabinet:1.2mm |
|||
Channel width:≤550mm |
|||
Direction:Bi-directional |
|||
speed:35 person/min |
|||
Weight: 80KG |
|||
Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system) |
|||
Working environment: indoors and outdoors. |
Tripod Turnstile
Turnstile
Specification |
|||
Dimension: 1200*280*980 mm |
|||
Material:304 # stainless steel |
|||
Tickness: Head: 1.5mm , Cabinet:1.2mm |
|||
Channel width:≤550mm |
|||
Direction:Bi-directional |
|||
Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system) |
|||
Working environment: indoors and outdoors. |
C11W
1.3MP Wireless Cube
- 1.3 Megapixel
- Fixed Lens with f3.6mm/F1.8
- Basic WDR
- Wi-Fi ((IEEE 802.11b/g/n)
- Event trigger, response and notification
E11A
1MP with Basic WDR
- 1 Megapixel
- Fixed Lens with f4.2mm/F1.8
- Basic WDR
- Event trigger, response and notification
A71
4MP Outdoor Dome with D/N
- 1 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Extreme WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
B53
3MP with D/N
- 3 Megapixel
- Day & Night with Adaptive IR LED
- Fixed Lens with f1.9mm/F2.8
- Superior WDR
- Super wide angle
- Wide Angle
- Event trigger, response and notification
A21
3MP Box with D/N
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity
- Fixed Lens with f2.8mm/F1.8
- Extreme WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
E217
2MP Security Surveillance
- Security Surveillance
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity
- Fixed Lens with f2.93mm/F2.0
- Extreme WDR
- Super wide angle
- Built-in Analytics
A31
3MP Bullet with D/N
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.85
- Advanced WDR
- Super wide angle
- H.265 Compression
- Event trigger, response and notification
D32
3MP with D/N
- 3 Megapixel
- Day & Night with Adaptive IR LED
- Fixed Lens with f4.2mm/F1.8
- Event trigger, response and notification
UV200
Under Vehicle Scanner
